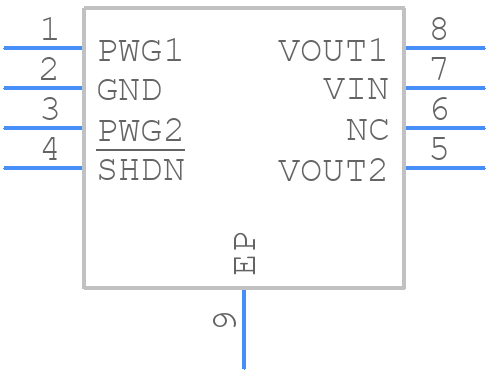

MCP1722T-5012H/Q8B - Microchip

MCP1722T-5012H/Q8B Details

• Manufacturer Part Number:

  MCP1722T-5012H/Q8B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  VDFN-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  24

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.75 V

• Dropout Voltage2-Max:

  0.75 V

• Input Voltage-Max:

  55 V

• Input Voltage-Min:

  13 V

• JESD-30 Code:

  S-PDSO-N8

• Length:

  3 mm

• Load Regulation-Max:

  0.025%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.05 A

• Output Current2-Max:

  0.1 A

• Output Voltage1-Max:

  12.24 V

• Output Voltage1-Min:

  11.76 V

• Output Voltage1-Nom:

  12 V

• Output Voltage2-Max:

  5.1 V

• Output Voltage2-Min:

  4.9 V

• Output Voltage2-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
