MCP1755T-3302E/DC - Microchip

Description: MICROCHIP - MCP1755T-3302E/DC - Fixed LDO Voltage Regulator, 3.6V to 16V, 300mV Dropout, 3.3Vout, 300mAout, SOT-223-5

Download MCP1755T-3302E/DC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

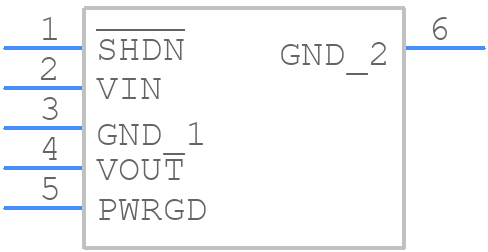

MCP1755T-3302E/DC - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1755T-3302E/DC - Microchip PCB footprint - SOT223 (5-Pin) - SOT223 (5-Pin) - SOT-223 (DC)
click to zoom
3D Models
MCP1755T-3302E/DC - Microchip - 3D model - SOT223 (5-Pin) - SOT-223 (DC)
click to zoom

MCP1755T-3302E/DC Details

  • Manufacturer Part Number:

    MCP1755T-3302E/DC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    5

  • Manufacturer Package Code:

    SOT-223-5

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    17.6 V

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Line Regulation-Max:

    0.02046%

  • Load Regulation-Max:

    0.0165%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOT-223-5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.5 mm

MCP1755T-3302E/DC Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP1755T-3302E/DC involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output capacitor should be placed close to the device to minimize the loop area and reduce noise.
  • The maximum ambient temperature range for the MCP1755T-3302E/DC is -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
  • Yes, the MCP1755T-3302E/DC is suitable for high-reliability applications. Microchip Technology Inc. provides a range of reliability and quality data, including FIT (Failure-In-Time) rates, to support the use of this device in critical applications.
  • To troubleshoot issues with the MCP1755T-3302E/DC, start by verifying the input voltage and current, and checking the output voltage and current. Use an oscilloscope to measure the output voltage ripple and noise. Check the PCB layout and ensure that the device is properly decoupled and that the input and output capacitors are correctly sized. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
