MCP1791T-5002E/DC - Microchip

Description: MCP1791T-5002E/DC, Voltage Regulator, 0.07A, 5 V ±2.5%, 6 → 30 Vin, 6-Pin SOT-223

Download MCP1791T-5002E/DC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

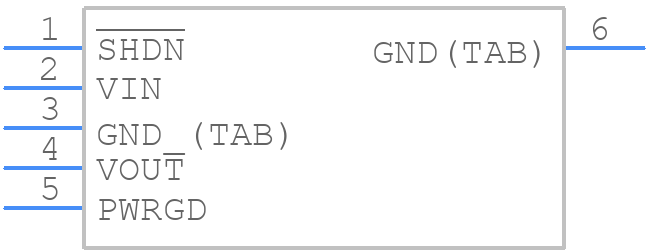

MCP1791T-5002E/DC - Microchip - PCB symbol
