MCP1810T-25I/J8A - Microchip

Description: MICROCHIP - MCP1810T-25I/J8A - LDO, FIXED, 2.5V, 0.15A, VDFN-8

Download MCP1810T-25I/J8A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

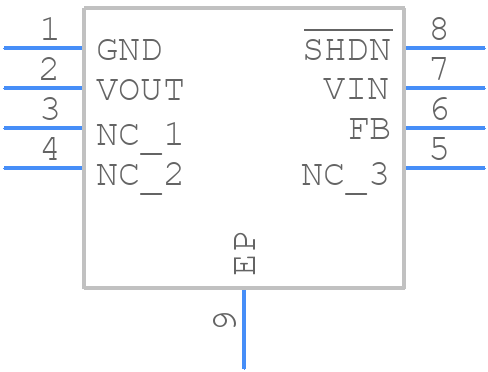

MCP1810T-25I/J8A - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1810T-25I/J8A - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - VDFN
click to zoom
3D Models
MCP1810T-25I/J8A - Microchip - 3D model - Small Outline No-lead - VDFN
click to zoom

MCP1810T-25I/J8A Details

  • Manufacturer Part Number:

    MCP1810T-25I/J8A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-09-28

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.38 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Load Regulation-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

MCP1810T-25I/J8A Frequently Asked Questions (FAQs)

  • The maximum input voltage that the MCP1810T-25I/J8A can handle is 30V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended PCB layout guidelines, use a suitable output capacitor with a low ESR, and ensure that the input voltage is within the specified range.
  • The maximum output current that the MCP1810T-25I/J8A can provide is 1A, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and reliability.
  • To protect the MCP1810T-25I/J8A from overheating, ensure that the device is operated within the specified temperature range of -40°C to 125°C, and provide adequate heat sinking and airflow to dissipate heat generated by the device.
  • The EN (Enable) pin is used to enable or disable the output voltage. When the EN pin is pulled high, the output voltage is enabled, and when it's pulled low, the output voltage is disabled. This pin can be used to implement power sequencing or to turn off the output voltage during shutdown or standby modes.
