MCP1825S-5002E/DB - Microchip

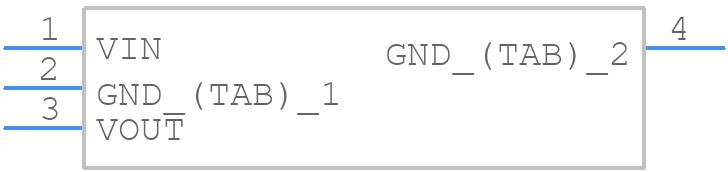

MCP1825S-5002E/DB Details

• Manufacturer Part Number:

  MCP1825S-5002E/DB

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

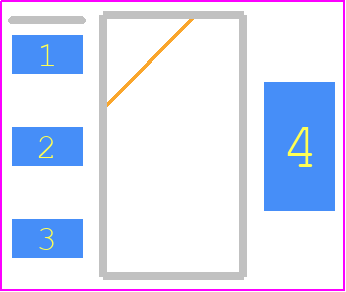

• Part Package Code:

  SOT-223

• Package Description:

  SOT-223, 3 PIN

• Pin Count:

  3

• Manufacturer Package Code:

  SOT-223-3

• Country Of Origin:

  Taiwan, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.35 V

• Dropout Voltage1-Nom:

  0.21 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  5.475 V

• JESD-30 Code:

  R-PSSO-G3

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Line Regulation-Max:

  0.0042%

• Load Regulation-Max:

  0.05%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  3

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  5.125 V

• Output Voltage1-Min:

  4.875 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOT-223

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.8 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.3 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  40

• Voltage Tolerance-Max:

  2.5%

• Width:

  3.5 mm
