MCP1826T-1202E/DC - Microchip

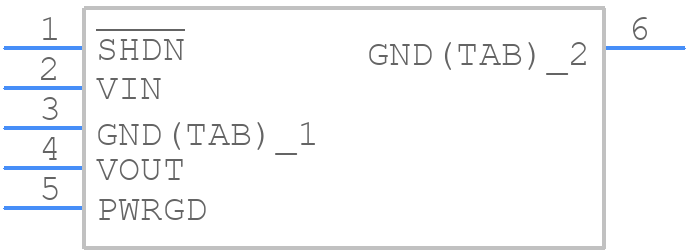

MCP1826T-1202E/DC Details

• Manufacturer Part Number:

  MCP1826T-1202E/DC

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOT-223

• Package Description:

  SOT-223, 5 PIN

• Pin Count:

  5

• Manufacturer Package Code:

  SOT-223-5

• Country Of Origin:

  Taiwan, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.4 V

• Dropout Voltage1-Nom:

  0.25 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  2.3 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Line Regulation-Max:

  0.00888%

• Load Regulation-Max:

  0.012%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  1.23 V

• Output Voltage1-Min:

  1.17 V

• Output Voltage1-Nom:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOT-223-5

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.8 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  40

• Voltage Tolerance-Max:

  2.5%

• Width:

  3.5 mm
