Part Image

MCP19035-AAAAE/MF - Microchip

Description: Microchip MCP19035-AAAAE/MF, Buck Controller, 50 mA, 345 kHz 10-Pin, DFN

Download MCP19035-AAAAE/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

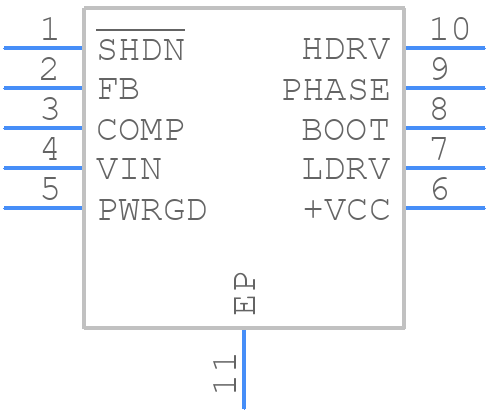

MCP19035-AAAAE/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP19035-AAAAE/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MF)10-Lead(DFN)
click to zoom
3D Models
MCP19035-AAAAE/MF - Microchip - 3D model - Small Outline No-lead - (MF)10-Lead(DFN)
click to zoom

MCP19035-AAAAE/MF Details

  • Manufacturer Part Number:

    MCP19035-AAAAE/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    DFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    345 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP19035-AAAAE/MF Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP19035-AAAAE/MF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the input and output capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, the input voltage should be well-regulated and the input capacitor should be placed close to the device.
  • The maximum input voltage that the MCP19035-AAAAE/MF can handle is 18V. Exceeding this voltage may damage the device.
  • The output voltage of the MCP19035-AAAAE/MF can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (typically 1.2V).
  • The maximum output current that the MCP19035-AAAAE/MF can deliver is 3A. Exceeding this current may cause the device to overheat or fail.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP19035-AAAAE/MF Overview

Use the download button to access the MCP19035-AAAAE/MF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP19, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
