MCP19114T-E/MQ - Microchip

Description: Digitally Enhanced Power Analog Synchronous Low-Side PWM Controller

Download MCP19114T-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

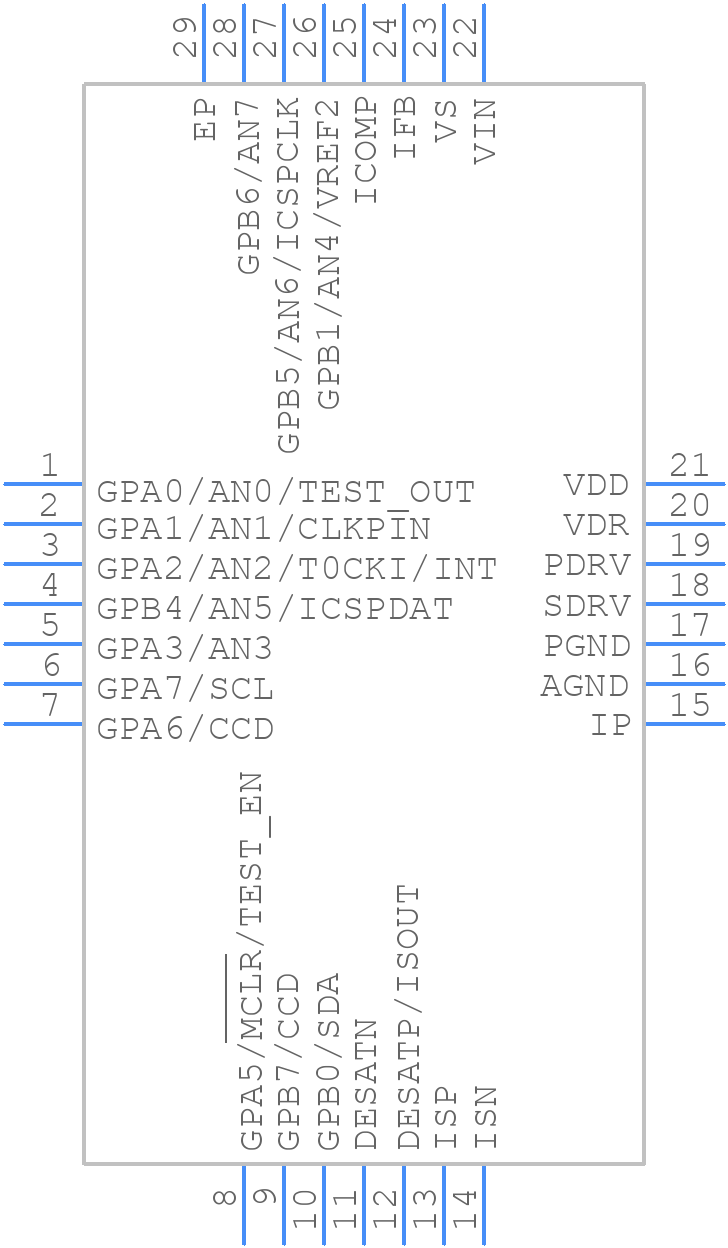

MCP19114T-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP19114T-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom
3D Models
MCP19114T-E/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)28-Lead(QFN)
click to zoom

MCP19114T-E/MQ Details

  • Manufacturer Part Number:

    MCP19114T-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP19114T-E/MQ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP19114T-E/MQ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, and to use a suitable output capacitor with a low ESR. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
  • The maximum ambient temperature range for the MCP19114T-E/MQ is -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range.
  • Yes, the MCP19114T-E/MQ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the MCP19114T-E/MQ, start by checking the input voltage, output voltage, and current. Verify that the device is operated within its recommended operating conditions, and that the PCB layout and component selection are correct. Use oscilloscopes and thermal imaging cameras to identify any issues. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP19114T-E/MQ Overview

Use the download button to access the MCP19114T-E/MQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP19, or try a keyword search, such as Switching Regulator or Controllers
