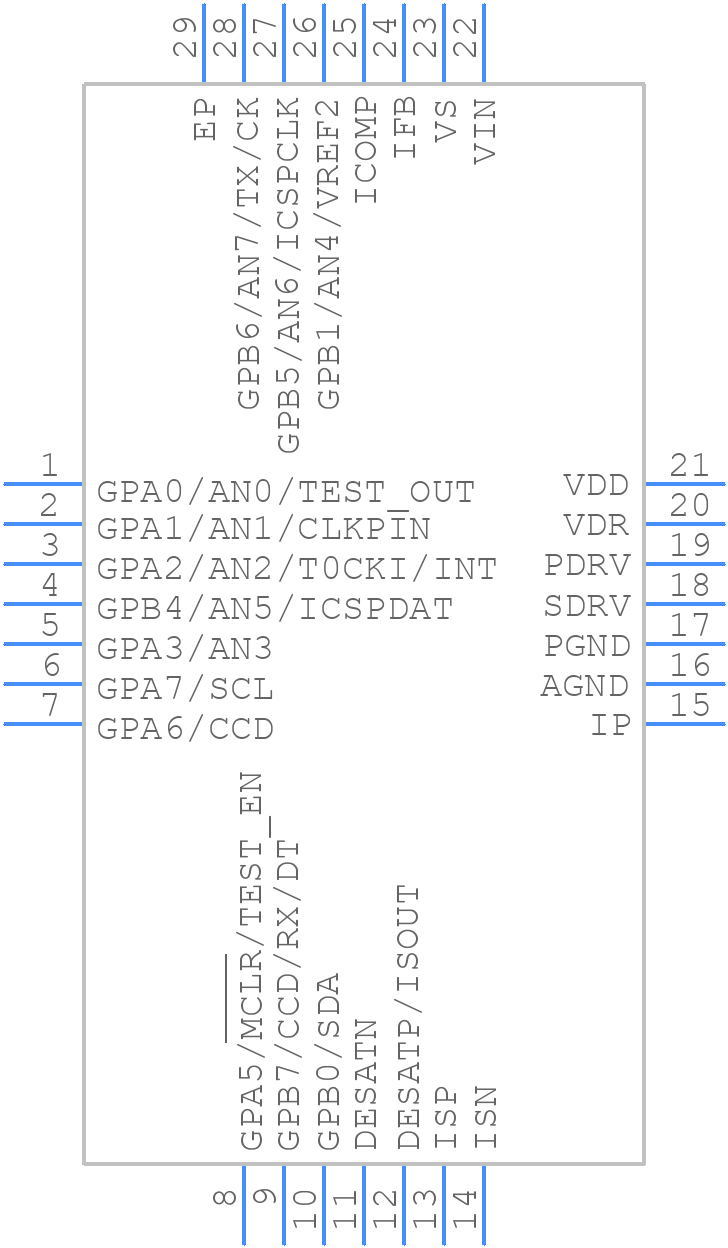

MCP19117-E/MQ - Microchip

MCP19117-E/MQ Details

• Manufacturer Part Number:

  MCP19117-E/MQ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  28

• Manufacturer Package Code:

  QFN-28

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Date Of Intro:

  2016-03-21

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Additional Feature:

  5 VOLT REGULATING OUTPUT ALSO AVAILABLE

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  42 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PQCC-N28

• JESD-609 Code:

  e3

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  2000 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
