MCP2003-E/P - Microchip

Description: LIN-compatible driver, w/WAKE pins Microchip MCP2003-E/P, LIN Transceiver 20kBd 2-channel LIN 1.3, LIN 2.0, LIN 2.1, SAE J2602, 8-Pin PDIP

Download MCP2003-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

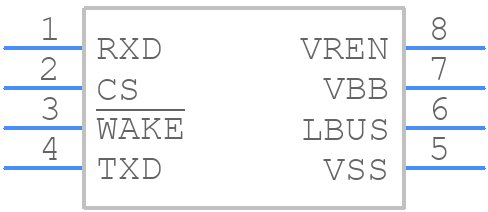

MCP2003-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2003-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]
click to zoom
3D Models
MCP2003-E/P - Microchip - 3D model - Dual-In-Line Packages - 8-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]
click to zoom

MCP2003-E/P Details

  • Manufacturer Part Number:

    MCP2003-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    NO

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MCP2003-E/P Frequently Asked Questions (FAQs)

  • The maximum data rate that can be achieved with the MCP2003-E/P is 100 kbps in asynchronous mode and 1 Mbps in synchronous mode.
  • The MCP2003-E/P can be configured for master or slave mode by setting the appropriate bits in the Control Register (CR). In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
  • The Wake-Up Timer (WUT) is used to wake up the device from Sleep mode after a programmable time period. This allows the device to periodically check for incoming data or perform other tasks while minimizing power consumption.
  • The MCP2003-E/P has built-in error detection and correction mechanisms, such as parity and checksum checks. In addition, the device provides interrupt flags and error status registers to notify the host processor of errors and exceptions.
  • The power consumption of the MCP2003-E/P varies depending on the operating mode. In Active mode, the typical current consumption is around 1.5 mA, while in Sleep mode, it is around 10 μA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2003-E/P Overview

Use the download button to access the MCP2003-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP20, or try a keyword search, such as Network Interfaces
