MCP2004AT-E/SN - Microchip

Description: LIN Transceivers Stand alone LIN Transceiver

Download MCP2004AT-E/SN Model

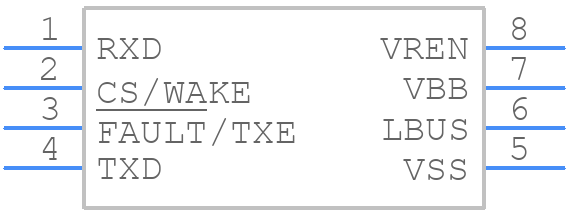

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP2004AT-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
MCP2004AT-E/SN - Microchip  - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

MCP2004AT-E/SN Details

  • Manufacturer Part Number:

    MCP2004AT-E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MCP2004AT-E/SN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCP2004AT-E/SN is -40°C to +125°C.
  • The MCP2004AT-E/SN can be configured for I2C or SPI mode by setting the MODE pin high or low, respectively, during power-up. For I2C mode, the MODE pin should be connected to VDD, and for SPI mode, it should be connected to GND.
  • The maximum data transfer rate for the MCP2004AT-E/SN is 400 kHz for I2C mode and 10 MHz for SPI mode.
  • The MCP2004AT-E/SN has built-in error detection and correction mechanisms, including checksum and retry mechanisms. The device also provides a BUSY signal to indicate when it is busy transmitting or receiving data.
  • Yes, the MCP2004AT-E/SN can be used in a multi-master configuration, where multiple masters can access the device simultaneously. However, this requires careful bus arbitration and collision detection mechanisms to be implemented.
