MCP2200T-I/MQ - Microchip

Description: Microchip MCP2200T-I/MQ, USB Controller, 12Mbps, USB to UART, 3 → 5.5 V, 20-Pin QFN

Download MCP2200T-I/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

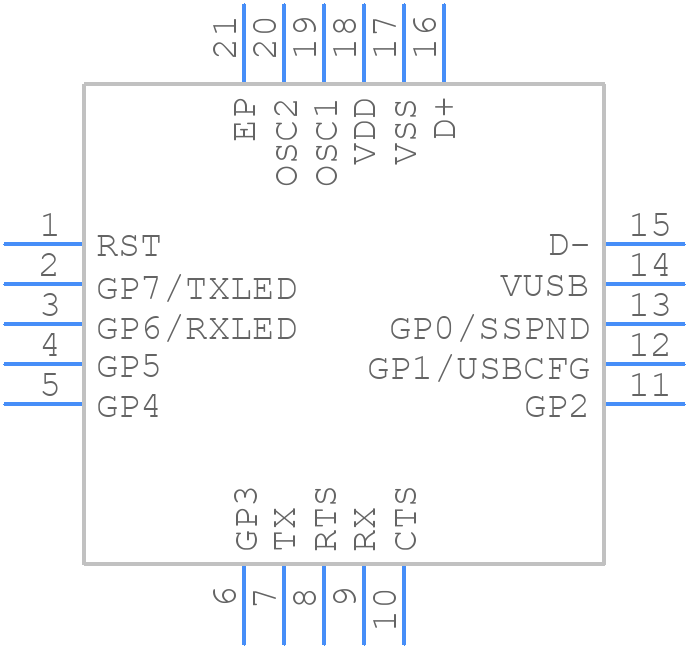

MCP2200T-I/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2200T-I/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom
3D Models
MCP2200T-I/MQ - Microchip - 3D model - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom

MCP2200T-I/MQ Details

  • Manufacturer Part Number:

    MCP2200T-I/MQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Bus Compatibility:

    UART; USB

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

MCP2200T-I/MQ Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the MCP2200T-I/MQ is 3 meters (10 feet) for a full-speed USB connection, but it can be extended up to 5 meters (16.4 feet) with the use of active repeaters or hubs.
  • No, the MCP2200T-I/MQ is designed to operate within the USB specification's power limits, which is up to 100mA. If your device requires more power, you will need to use a different USB controller or add an external power management circuit.
  • To implement a custom USB device class, you will need to develop a custom firmware that communicates with the MCP2200T-I/MQ using its API. You will also need to create a custom device class driver for the host operating system. Microchip provides a software development kit (SDK) and documentation to help with this process.
  • No, the MCP2200T-I/MQ is a USB device controller and does not support USB OTG, which requires a dual-role device controller. If you need OTG functionality, you will need to use a different USB controller.
  • No, the MCP2200T-I/MQ is a USB device controller and is not designed to be used in a USB hub application. If you need to implement a USB hub, you will need to use a different USB controller that supports hub functionality.
