MCP2200T-I/MQVAO - Microchip

Description: USB Interface IC USB to UART Protocol Converter

Download MCP2200T-I/MQVAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

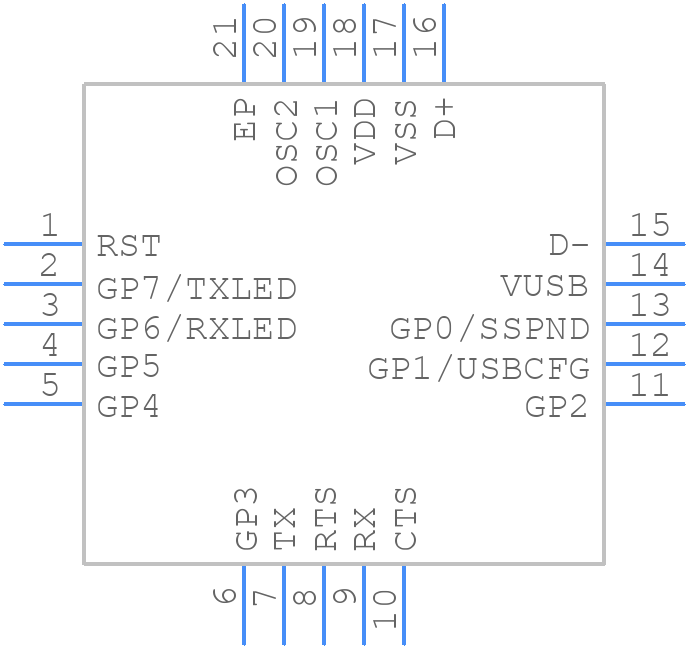

MCP2200T-I/MQVAO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2200T-I/MQVAO - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom
3D Models
MCP2200T-I/MQVAO - Microchip - 3D model - Quad Flat No-Lead - (MQ)20-Lead(QFN)
click to zoom

MCP2200T-I/MQVAO Details

  • Manufacturer Part Number:

    MCP2200T-I/MQVAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Bus Compatibility:

    UART, USB

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

MCP2200T-I/MQVAO Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the MCP2200 is 3 meters (10 feet) for a full-speed USB device, and 5 meters (16.4 feet) for a low-speed USB device, assuming a good quality cable and a reliable connection.
  • Yes, the MCP2200 can be used as a USB-to-UART bridge in a 3.3V system. The device is designed to operate from a single 3.3V supply, and the UART interface is 3.3V tolerant.
  • The MCP2200 can be configured for a specific baud rate using the USB interface. The device uses a 48 MHz clock, and the baud rate can be set using the USB SET_LINE_CODING request. The baud rate can be set to standard values such as 9600, 19200, 38400, 57600, and 115200 bps.
  • The power consumption of the MCP2200 depends on the operating mode. In suspend mode, the device consumes around 10 μA. In active mode, the device consumes around 20 mA when transmitting data at 12 Mbps, and around 10 mA when receiving data at 12 Mbps.
  • Yes, the MCP2200 can be used with a USB hub. However, the device must be connected to a self-powered hub, as it does not support bus-powered operation. Additionally, the hub must be able to provide enough power to the device, as it requires around 20 mA when transmitting data at 12 Mbps.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2200T-I/MQVAO Overview

Use the download button to access the MCP2200T-I/MQVAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP22, or try a keyword search, such as Bus Controllers
