MCP2210T-I/SO - Microchip

Description: USB to SPI Protocol Converter with GPIO SPI Interface 5V Automotive 20-Pin SOIC W T/R

Download MCP2210T-I/SO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

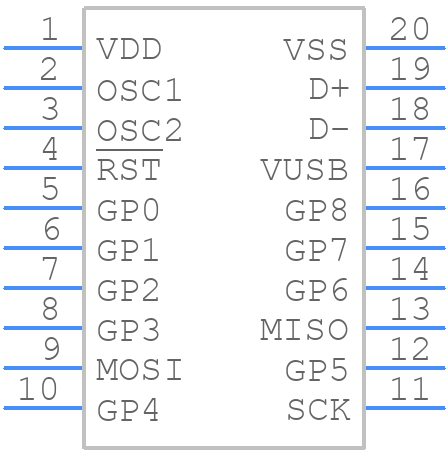

MCP2210T-I/SO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2210T-I/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic Small Outline (SO) - Wide, 7.50 mm Body [SOIC
click to zoom
3D Models
MCP2210T-I/SO - Microchip - 3D model - Small Outline Packages - 20-Lead Plastic Small Outline (SO) - Wide, 7.50 mm Body [SOIC
click to zoom

MCP2210T-I/SO Details

  • Manufacturer Part Number:

    MCP2210T-I/SO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOIC-20

  • Country Of Origin:

    Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Bus Compatibility:

    SPI, USB

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

MCP2210T-I/SO Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the MCP2210 is 3 meters (10 feet) for a full-speed USB device, and 1 meter (3.3 feet) for a low-speed USB device, assuming a good quality cable and a reliable USB host.
  • Yes, the MCP2210 can be used as a USB-to-UART bridge. It has a built-in UART interface that can be connected to a microcontroller or other UART device, and it can translate the UART data to USB and vice versa.
  • The MCP2210 can be configured for I2C or SPI mode by setting the appropriate registers through the USB interface. The specific registers and values to set depend on the mode and the device being connected. Refer to the datasheet and application notes for more information.
  • The power consumption of the MCP2210 depends on the operating mode and the clock frequency. In general, the power consumption is around 50-100 mA for a typical USB application. Refer to the datasheet for more detailed power consumption information.
  • Yes, the MCP2210 can be used with a 3.3V power supply. The device has a built-in voltage regulator that can handle input voltages from 3.3V to 5.5V.
