MCP2221AT-I/SL - Microchip

Description: USB Interface IC USB 2.0 to I2C Converter with GPIO

Download MCP2221AT-I/SL Model
Schematic
symbols

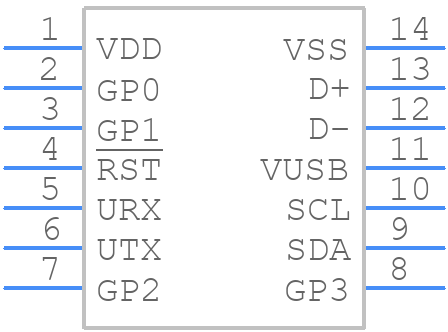

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MCP2221AT-I/SL - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-LEAD PSO (SL) - NARROW, 3.9MM [SOIC]
click to zoom
3D Models
MCP2221AT-I/SL - Microchip  - 3D model - Small Outline Packages - 14-LEAD PSO (SL) - NARROW, 3.9MM [SOIC]
click to zoom

MCP2221AT-I/SL Details

  • Manufacturer Part Number:

    MCP2221AT-I/SL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2016-06-15

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Bus Compatibility:

    I2C; SMBUS; UART; USB

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2221AT-I/SL Overview

Use the download button to access the MCP2221AT-I/SL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP22, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
