MCP23008-E/ML - Microchip

Description: 8-Bit I/O Port Expander I2C 1.7M QFN20EP Microchip MCP23008-E/ML, 8-channel 8bit I/O Expander 1.7MHz, I2C, 20-Pin QFN

Download MCP23008-E/ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

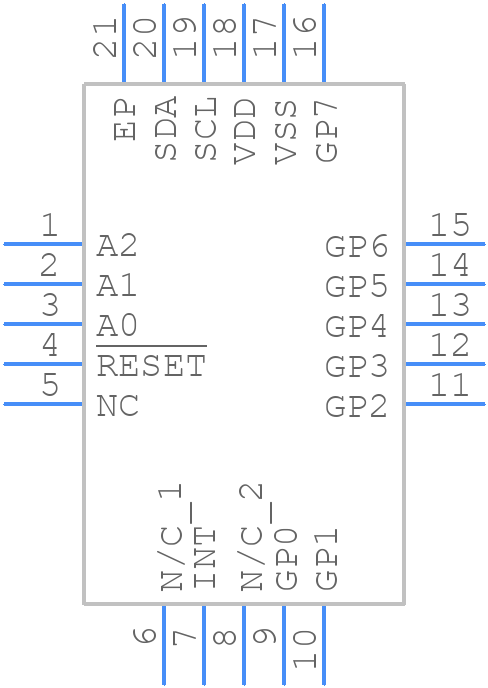

MCP23008-E/ML - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP23008-E/ML - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom
3D Models
MCP23008-E/ML - Microchip - 3D model - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom

MCP23008-E/ML Details

  • Manufacturer Part Number:

    MCP23008-E/ML

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MCP23008-E/ML Frequently Asked Questions (FAQs)

  • The maximum frequency of the I2C clock is 400 kHz.
  • The MCP23008 can be reset by pulling the RESET pin low for a minimum of 1 ms.
  • The INT pin is an interrupt output that can be used to notify the microcontroller that an input has changed state.
  • Yes, the MCP23008 is 5V tolerant, but it operates at 2.5V to 5.5V. Level shifters may be required for 5V microcontrollers.
  • The MCP23008 can be configured for input or output by writing to the IODIR register. A '1' sets the pin as an input, while a '0' sets the pin as an output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP23008-E/ML Overview

Use the download button to access the MCP23008-E/ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23, or try a keyword search, such as Parallel IO Ports

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
