MCP23008-E/P - Microchip

Description: I/O Expander 8bit 8-channel 5MHz I2C, Serial MHz, 18-pin PDIP

Download MCP23008-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

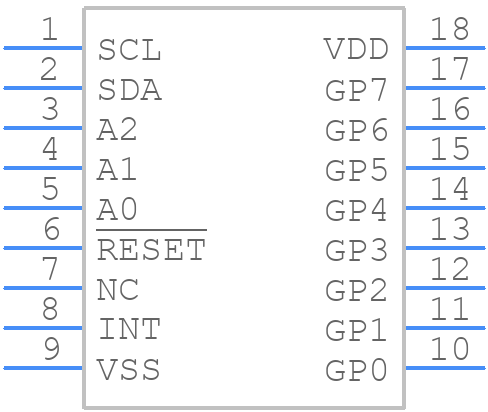

MCP23008-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP23008-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]
click to zoom
3D Models
MCP23008-E/P - Microchip - 3D model - Dual-In-Line Packages - 18-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]
click to zoom

MCP23008-E/P Details

  • Manufacturer Part Number:

    MCP23008-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    18

  • Manufacturer Package Code:

    PDIP-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MCP23008-E/P Frequently Asked Questions (FAQs)

  • The maximum frequency of the I2C clock is 400 kHz.
  • The MCP23008 can be reset by pulling the RESET pin low for a minimum of 1 ms.
  • The INTA and INTB pins are interrupt output pins that can be used to notify the microcontroller of changes in the input port states.
  • Yes, the MCP23008 is 5V tolerant, but it operates at 2.7V to 5.5V. If your microcontroller operates at 5V, you may need to use level shifters or voltage dividers to interface with the MCP23008.
  • The MCP23008 can be configured for input or output mode by writing to the IODIRA and IODIRB registers. A '1' in the register sets the corresponding pin as an input, while a '0' sets it as an output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP23008-E/P Overview

Use the download button to access the MCP23008-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23, or try a keyword search, such as Parallel IO Ports
