MCP23008T-E/SS - Microchip

Description: I2C Interface 1700kHz 5.5V 20-Pin SSOP T/R

Download MCP23008T-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

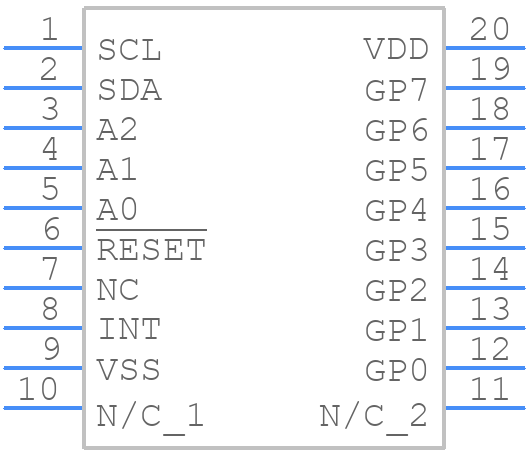

Symbol
MCP23008T-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP23008T-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom
3D Models
MCP23008T-E/SS - Microchip - 3D model - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom

MCP23008T-E/SS Details

  • Manufacturer Part Number:

    MCP23008T-E/SS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    SSOP-20

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MCP23008T-E/SS Frequently Asked Questions (FAQs)

  • The maximum frequency of the I2C clock is 400 kHz, but it can be operated at 100 kHz or 400 kHz depending on the application.
  • The MCP23008T-E/SS can be reset by pulling the RESET pin low for a minimum of 1 ms. This will reset all registers to their default values.
  • The INTA and INTB pins are interrupt output pins that can be used to notify the microcontroller of events such as input pin changes or completion of a write operation.
  • Yes, the MCP23008T-E/SS is 5V tolerant, but it operates at 2.7V to 5.5V. It can be used as a GPIO expander with a 5V microcontroller, but level shifting may be required.
  • The MCP23008T-E/SS can be configured for input or output mode by writing to the IODIR register. A '1' in the IODIR register sets the corresponding pin as an input, while a '0' sets it as an output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP23008T-E/SS Overview

Use the download button to access the MCP23008T-E/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23, or try a keyword search, such as Parallel IO Ports

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
