![MCP23S08-E/P - Microchip - 3D model - Dual-In-Line Packages - 18-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP23S08-E/P
- Part Number MCP23S08-E/P
- Manufacturer Microchip
- Pin Count 18
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 18-Lead Plastic Dual In-Line (P) - 300 mil Body [PDIP]
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP23S08-E/P Details
-
Manufacturer Part Number:
MCP23S08-E/P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
18
-
Manufacturer Package Code:
PDIP-18
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
6 Weeks
-
Manufacturer:
Microchip Technology Inc
MCP23S08-E/P Frequently Asked Questions (FAQs)
-
The maximum frequency of the I2C clock is 400 kHz, as per the I2C specification.
-
You can use the A0, A1, and A2 address pins to set a unique address for each device, allowing up to 8 devices on the same bus.
-
The RESET pin is an active-low input that resets the device when pulled low. It can be used to reset the device to its default state.
-
Yes, you can use the MCP23S08 with a microcontroller that doesn't have I2C by using a bit-banging approach, where the microcontroller emulates the I2C protocol using its GPIO pins.
-
The interrupt pins can be configured to trigger on rising, falling, or both edges of the input signals. This is done by setting the corresponding bits in the IOCON register.
Trust Checks
Community Provided
System Verified
Community Approved
MCP23S08-E/P Overview

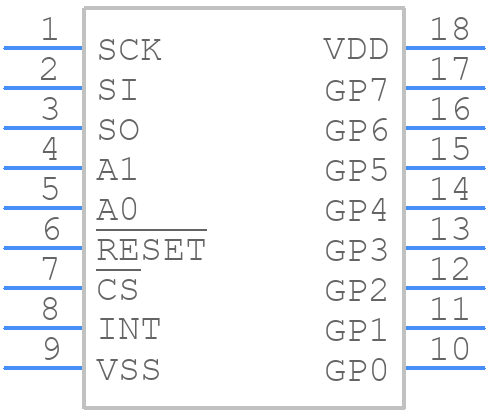

Use the download button to access the MCP23S08-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23,
or try a keyword search, such as Parallel IO Ports
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
