MCP23S08-E/SO - Microchip

Description: 8-bit I/O Expander,SPI,MCP23S08-E/SO

Download MCP23S08-E/SO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

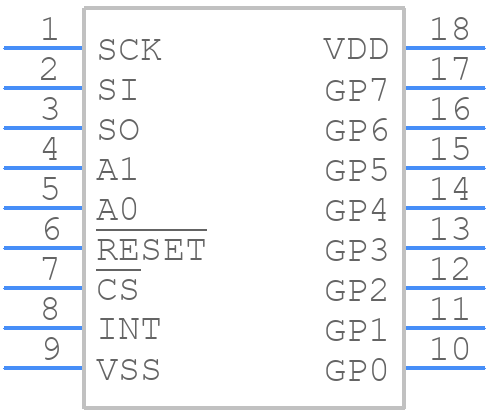

MCP23S08-E/SO - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP23S08-E/SO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SO) - Wide, 7.50 mm (.300 In.) Body [SOIC
click to zoom
3D Models
MCP23S08-E/SO - Microchip - 3D model - Small Outline Packages - (SO) - Wide, 7.50 mm (.300 In.) Body [SOIC
click to zoom

MCP23S08-E/SO Details

  • Manufacturer Part Number:

    MCP23S08-E/SO

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    18

  • Manufacturer Package Code:

    SOIC-18

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MCP23S08-E/SO Frequently Asked Questions (FAQs)

  • The MCP23S08 can handle SPI clock frequencies up to 10 MHz.
  • The MCP23S08 can be configured for 8-bit or 16-bit port expansion by setting the IOCON.BANK bit. When IOCON.BANK = 0, the device is in 8-bit mode, and when IOCON.BANK = 1, the device is in 16-bit mode.
  • The HAEN (Hardware Address Enable) bit in the IOCON register enables or disables the hardware address pins (A0, A1, A2). When HAEN = 1, the hardware address pins are enabled, and when HAEN = 0, they are disabled.
  • The MCP23S08 can be reset by pulling the RESET pin low for a minimum of 1 ms. The device will also reset when the power supply voltage falls below the minimum operating voltage.
  • The MCP23S08 can sink or source up to 25 mA per I/O pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP23S08-E/SO Overview

Use the download button to access the MCP23S08-E/SO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23, or try a keyword search, such as Parallel IO Ports

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
