MCP23S08-E/SS - Microchip

Description: 8-bit Input/Output Expander, SPI

Download MCP23S08-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

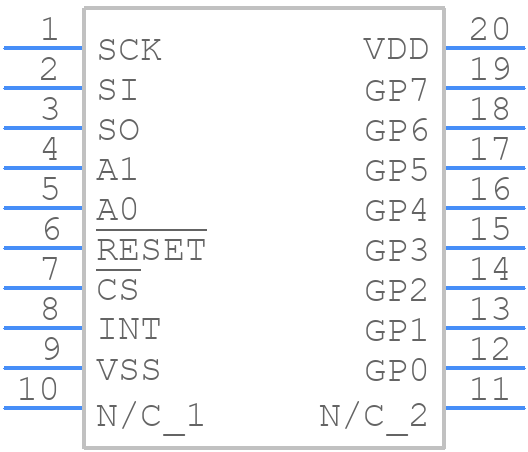

MCP23S08-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP23S08-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 20-lead ssop
click to zoom
3D Models
MCP23S08-E/SS - Microchip - 3D model - Small Outline Packages - 20-lead ssop
click to zoom

MCP23S08-E/SS Details

  • Manufacturer Part Number:

    MCP23S08-E/SS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    SSOP-20

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Qualification Status:

    Not Qualified

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MCP23S08-E/SS Frequently Asked Questions (FAQs)

  • The maximum frequency of the SPI interface is 10 MHz.
  • You can use the CS (Chip Select) pin to select which device to communicate with. Each device should have a unique CS pin connection.
  • The RESET pin is used to reset the device to its default state. It can be used to recover from a fault condition or to initialize the device during power-up.
  • Yes, the MCP23S08 is 3.3V compatible and can be used as a GPIO expander with a microcontroller that has a 3.3V supply.
  • The interrupt pins can be configured as active-high or active-low using the IOCON register. The interrupt source can be configured using the GPINTEN register.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP23S08-E/SS Overview

Use the download button to access the MCP23S08-E/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP23, or try a keyword search, such as Parallel IO Ports

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
