- Part Number MCP25050-E/P
- Manufacturer Microchip
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 14-Lead Plastic Dual In-line (P) – 300 mil (PDIP)
- Released Date Jan 11, 2017
- Last Modified Date Jun 16, 2025 5:20 AM UTC
- Pinout / Pin List Click Here (Member Only)
MCP25050-E/P Details
-
Manufacturer Part Number:
MCP25050-E/P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
DIP
-
Package Description:
DIP-14
-
Pin Count:
14
-
Manufacturer Package Code:
PDIP-14
-
Country Of Origin:
Thailand
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
6 Weeks
-
Manufacturer:
Microchip Technology Inc
MCP25050-E/P Frequently Asked Questions (FAQs)
-
The maximum data rate that can be achieved with the MCP25050-E/P is 1 Mbps, but it can be limited by the CAN bus protocol and the system design.
-
The MCP25050-E/P can be configured for a specific CAN bus protocol by setting the appropriate registers and bits in the device. Refer to the datasheet and application notes for specific configuration details.
-
The power consumption of the MCP25050-E/P in sleep mode is typically around 10 μA, but it can vary depending on the specific application and system design.
-
Yes, the MCP25050-E/P can be used in a multi-master CAN bus system, but it requires careful system design and configuration to ensure proper operation and avoid bus conflicts.
-
To troubleshoot CAN bus communication issues with the MCP25050-E/P, use a logic analyzer or CAN bus analyzer to monitor the bus signals and identify the source of the issue. Check the device configuration, bus termination, and system design for any errors or inconsistencies.
Trust Checks
System Verified
MCP25050-E/P Overview

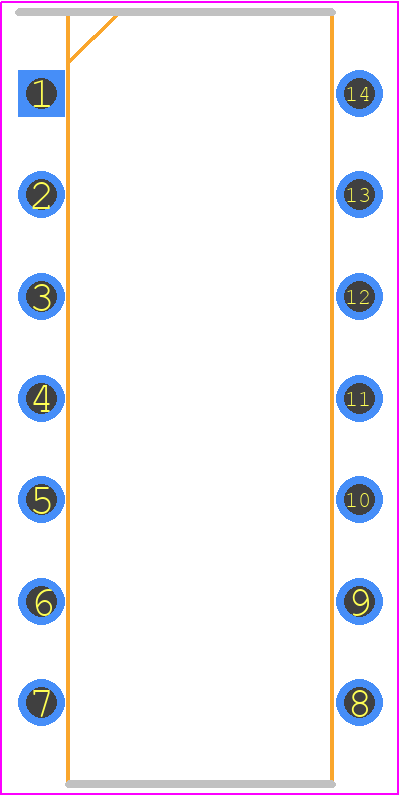

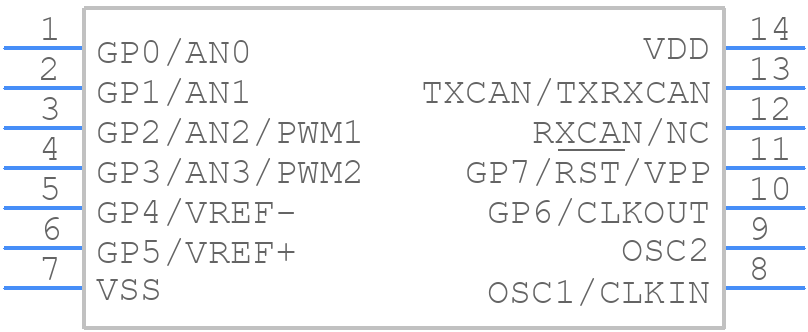

Use the download button to access the MCP25050-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP25,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
