- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP2551-E/P
- Part Number MCP2551-E/P
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8-Lead Plastic Dual In-line (P) – 300 mil (PDIP)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP2551-E/P Details
-
Manufacturer Part Number:
MCP2551-E/P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
PDIP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
MCP2551-E/P Frequently Asked Questions (FAQs)
-
The maximum cable length supported by the MCP2551-E/P is dependent on the specific application and the type of cable used. However, as a general guideline, the CAN bus specification recommends a maximum cable length of 40 meters (131.2 feet) for a single segment. Longer cable lengths can be achieved by using repeaters or by segmenting the bus.
-
The MCP2551-E/P can be configured for a specific CAN bus speed by setting the SCL and SJW registers. The SCL register sets the clock frequency, and the SJW register sets the synchronization jump width. The datasheet provides a table to determine the correct settings for different bus speeds.
-
The maximum number of nodes that can be connected to a CAN bus using the MCP2551-E/P is 127. This is a limitation of the CAN bus protocol, not the MCP2551-E/P itself.
-
The MCP2551-E/P has built-in error detection and fault confinement capabilities. The device can detect errors such as bit errors, stuff errors, and CRC errors, and can also detect faults such as bus-off and error-passive states. The datasheet provides more information on how to handle these errors and faults.
-
The MCP2551-E/P is a CAN 2.0B compliant device and does not support CAN FD. For CAN FD applications, a different device such as the MCP2561FD-E/P should be used.
Trust Checks
Community Provided
System Verified
Community Approved
MCP2551-E/P Overview

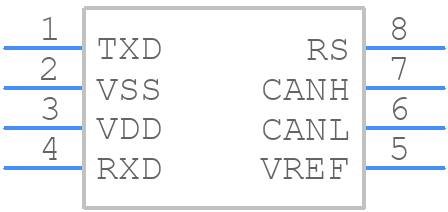

Use the download button to access the MCP2551-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP25,
or try a keyword search, such as Network Interfaces
