MCP2562FD-H/MF - Microchip

Description: CAN Interface IC CAN Flexible Data Rate Transceiver, CAN Controllers and Microcontrollers with 1.8V to 5.5V I/O

Download MCP2562FD-H/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

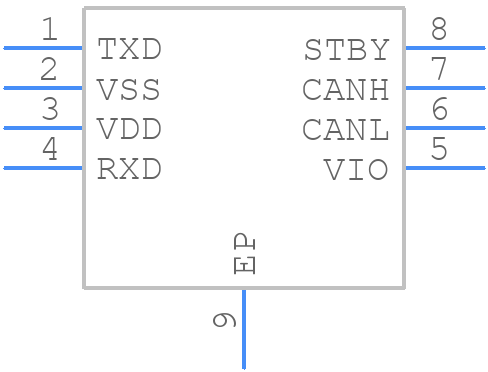

MCP2562FD-H/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2562FD-H/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-LEAD PLASTIC DUAL FLAT,NO LEAD PACKAGE (MF) -3X3X0.9MM BODY [DFN]
click to zoom
3D Models
MCP2562FD-H/MF - Microchip - 3D model - Small Outline No-lead - 8-LEAD PLASTIC DUAL FLAT,NO LEAD PACKAGE (MF) -3X3X0.9MM BODY [DFN]
click to zoom

MCP2562FD-H/MF Details

  • Manufacturer Part Number:

    MCP2562FD-H/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    8000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP2562FD-H/MF Frequently Asked Questions (FAQs)

  • The MCP2562FD-H/MF can support CAN bus frequencies up to 1 Mbps.
  • The MCP2562FD-H/MF can be configured using the SPI interface. The device has several registers that control the CAN bus mode, such as the Mode Register (MREQ) and the Bit Timing Register (BTREQ). Consult the datasheet for specific register settings for each mode.
  • The maximum number of nodes that can be connected to a CAN bus using the MCP2562FD-H/MF is 127, as per the CAN protocol specification.
  • The MCP2562FD-H/MF has built-in error detection and fault detection mechanisms. The device has error counters and status registers that can be used to detect and handle errors on the CAN bus. Consult the datasheet for specific error detection and fault detection mechanisms.
  • The power consumption of the MCP2562FD-H/MF depends on the operating mode and frequency of the CAN bus. In normal operating mode, the typical power consumption is around 12 mA at 5V supply voltage. Consult the datasheet for specific power consumption values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2562FD-H/MF Overview

Use the download button to access the MCP2562FD-H/MF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP25, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
