MCP3910A1-E/SS - Microchip

Description: Analog Front End - AFE 2 Chnl Energy Meter Front End 3V SPI/2

Download MCP3910A1-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

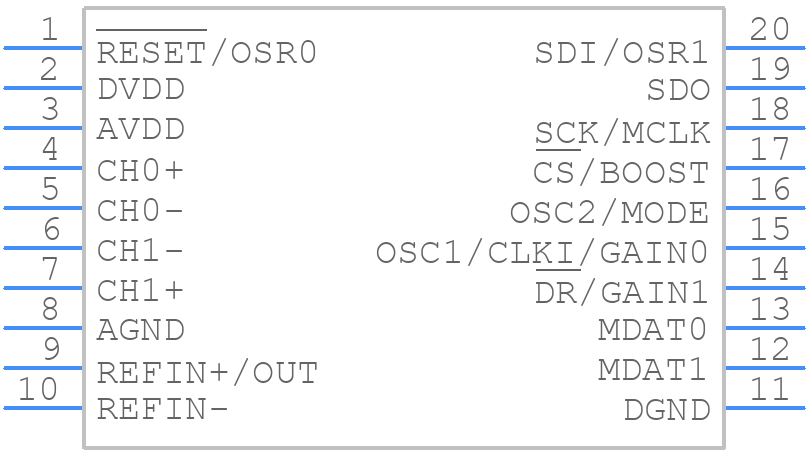

MCP3910A1-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3910A1-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom
3D Models
MCP3910A1-E/SS - Microchip - 3D model - Small Outline Packages - (SS)20-lead(SSOP)
click to zoom

MCP3910A1-E/SS Details

  • Manufacturer Part Number:

    MCP3910A1-E/SS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SSOP-20

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

MCP3910A1-E/SS Frequently Asked Questions (FAQs)

  • Microchip provides a layout and routing guide in their application note AN1531, which recommends separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops.
  • The MCP3910A1-E/SS has a built-in calibration feature. Refer to the datasheet section 4.4 'Calibration' for the calibration procedure. Additionally, Microchip provides an application note AN1349 that provides more detailed information on calibration and compensation techniques.
  • The maximum sampling rate of the MCP3910A1-E/SS is 100 kSPS. The power consumption increases with the sampling rate, but the datasheet provides a power consumption vs. sampling rate graph to help estimate the power consumption at different sampling rates.
  • The MCP3910A1-E/SS has built-in overvoltage protection up to 5V, but it's still recommended to use external protection circuitry such as voltage dividers or clamping diodes to protect the ADC from overvoltage conditions. For undervoltage conditions, ensure that the input signal is within the specified range of 0 to VREF.
  • Yes, the MCP3910A1-E/SS can be used in a multi-channel configuration. To synchronize the conversions, use the SYNC pin to trigger the conversions on multiple devices. Refer to the datasheet section 4.3 'Multi-Device Synchronization' for more information.
