It is recommended to separate the analog and digital signals on the PCB, using a star-grounding scheme and keeping the analog signals away from the digital signals. Additionally, using a ground plane and shielding can help reduce noise and interference.
To optimize the ADC's performance, it's essential to understand the application's requirements, such as the signal frequency, amplitude, and noise tolerance. Adjusting the ADC's gain, offset, and sampling rate can help optimize its performance. Additionally, using the ADC's built-in calibration features and adjusting the analog input impedance can also improve performance.
To handle overvoltage and undervoltage conditions, it's recommended to use external voltage limiting circuits, such as voltage dividers or clamping circuits, to protect the ADC's analog inputs. Additionally, using input protection devices, such as TVS diodes or Zener diodes, can also help prevent damage to the ADC.
To ensure the ADC's accuracy and linearity, it's essential to calibrate the ADC regularly, especially over temperature and time. Using the ADC's built-in calibration features and adjusting the gain and offset can help maintain accuracy and linearity. Additionally, using external calibration circuits or precision voltage references can also improve accuracy.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). During power-down, the sequence should be reversed, powering down the digital supply first, followed by the analog supply. This helps prevent latch-up and ensures proper shutdown.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP3911A0T-E/ML Overview

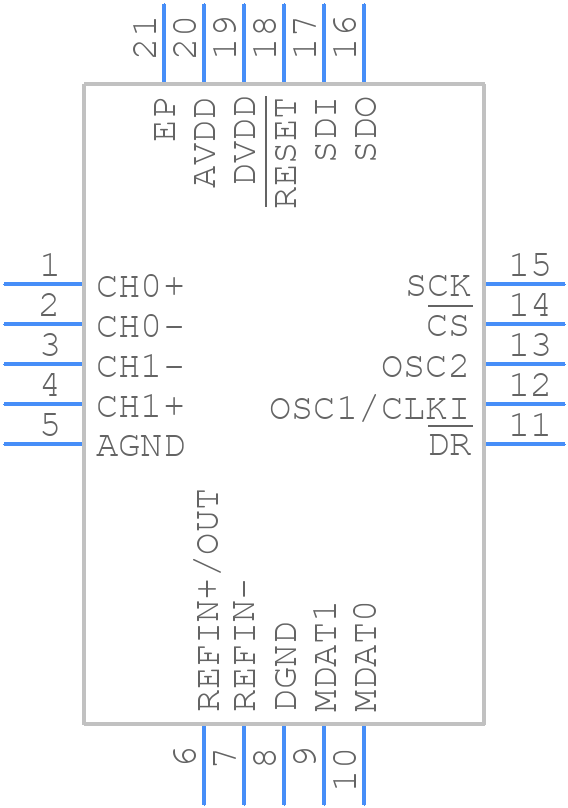

Use the download button to access the MCP3911A0T-E/ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39,
or try a keyword search, such as Other Signal Circuits
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
