MCP3912A1-E/MQ - Microchip

Description: Analog Front End - AFE 4 Chnl Energy Meter Front End 3V SPI/2

Download MCP3912A1-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

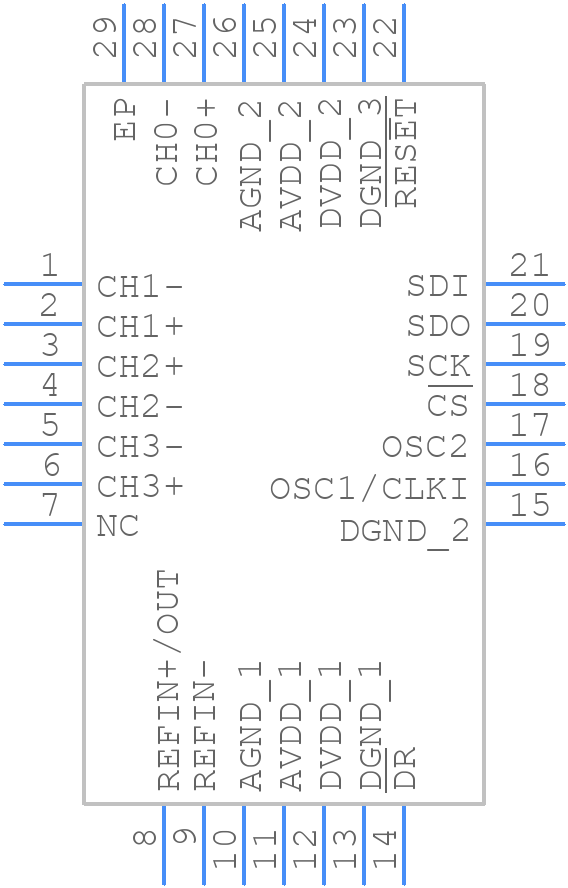

MCP3912A1-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3912A1-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MCP3912A1-E/MQ
click to zoom
3D Models
MCP3912A1-E/MQ - Microchip - 3D model - Quad Flat No-Lead - MCP3912A1-E/MQ
click to zoom

MCP3912A1-E/MQ Details

  • Manufacturer Part Number:

    MCP3912A1-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

MCP3912A1-E/MQ Frequently Asked Questions (FAQs)

  • It is recommended to separate the analog and digital signals on the PCB, using a star-ground configuration and keeping the analog signals away from the digital signals. Additionally, using a ground plane and shielding can help reduce noise and interference.
  • To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, consider using the built-in calibration features and adjusting the internal voltage reference.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and ready for operation.
  • The ADC's latency can be handled by using a double-buffered approach, where one buffer is being converted while the other is being read. Additionally, consider using a FIFO or a buffer to store the converted data, and ensure that your system can handle the conversion time by using a timer or a interrupt-driven approach.
  • Best practices for layout and routing of decoupling capacitors include placing them as close as possible to the ADC's power pins, using a low-ESR capacitor, and ensuring that the capacitor's value is suitable for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3912A1-E/MQ Overview

Use the download button to access the MCP3912A1-E/MQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39, or try a keyword search, such as Other Signal Circuits
