MCP3913A1-E/SS - Microchip

Description: Analog Front End - AFE 6 Chnl Energy Meter Front End 3V SPI/2

Download MCP3913A1-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

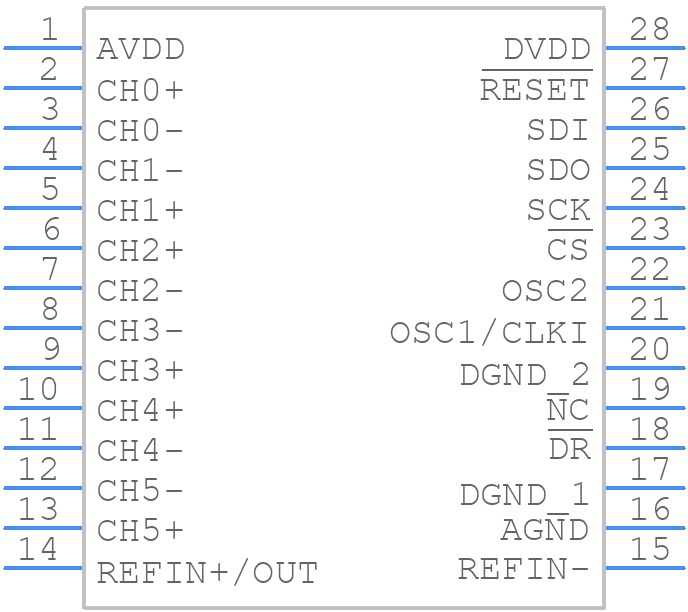

Symbol
MCP3913A1-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3913A1-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom
3D Models
MCP3913A1-E/SS - Microchip - 3D model - Small Outline Packages - 28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]
click to zoom

MCP3913A1-E/SS Details

  • Manufacturer Part Number:

    MCP3913A1-E/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM WIDTH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

MCP3913A1-E/SS Frequently Asked Questions (FAQs)

  • It is recommended to separate the analog and digital sections of the PCB with a ground plane in between. The analog section should be placed near the ADC inputs, and the digital section should be placed near the microcontroller. Use short, direct traces for the analog signals, and avoid crossing digital signals over the analog section.
  • To optimize the performance of the ADC, ensure that the input signals are within the recommended voltage range, and that the input impedance is matched to the ADC input impedance. Also, ensure that the ADC clock frequency is within the recommended range, and that the ADC is operated within the recommended temperature range.
  • The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and ready for operation.
  • If the ADC is not converting data correctly, check the input signals to ensure they are within the recommended voltage range, and that the input impedance is matched to the ADC input impedance. Also, check the ADC clock frequency and ensure it is within the recommended range. If the issue persists, try resetting the ADC or re-initializing the device.
  • The recommended method is to use the ADC's internal clock divider to synchronize the ADC conversions with the external clock signal. This ensures that the ADC conversions are triggered by the rising edge of the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3913A1-E/SS Overview

Use the download button to access the MCP3913A1-E/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
