MCP3913A1-E/SSVAO - Microchip Technology

Description: Six Synchronous Sampling 24-Bit Resolution Delta-Sigma A/D Converters • 94.5 dB SINAD, -107 dBc Total Harmonic

Download MCP3913A1-E/SSVAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

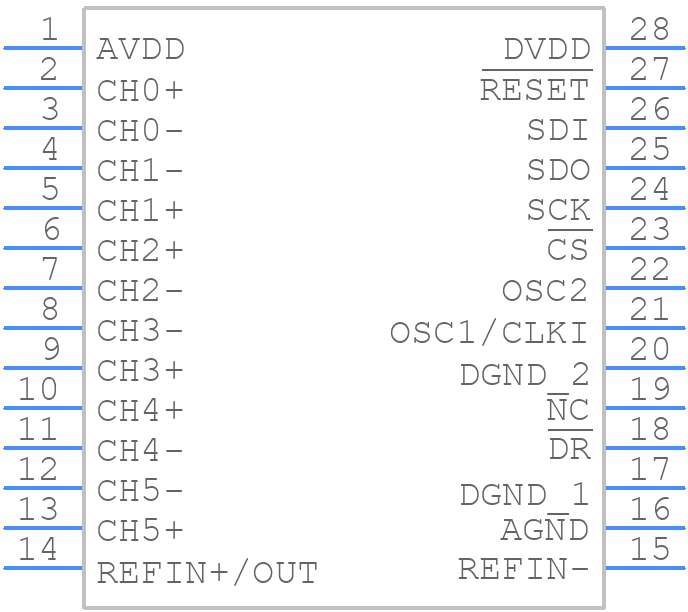

MCP3913A1-E/SSVAO - Microchip Technology - PCB symbol
click to zoom
PCB Footprints
MCP3913A1-E/SSVAO - Microchip Technology PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28
click to zoom
3D Models
MCP3913A1-E/SSVAO - Microchip Technology - 3D model - Small Outline Packages - SSOP-28
click to zoom

MCP3913A1-E/SSVAO Details

  • Manufacturer Part Number:

    MCP3913A1-E/SSVAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

MCP3913A1-E/SSVAO Frequently Asked Questions (FAQs)

  • Microchip provides a layout and routing guide in their application note AN1533, which recommends separating analog and digital signals, using ground planes, and minimizing trace lengths and loops.
  • The MCP3913A1-E/SSVAO has a built-in calibration feature. Refer to the datasheet section 4.4 'Calibration' for the calibration procedure. Additionally, Microchip provides an application note AN1349 that provides more detailed information on calibration and compensation techniques.
  • The maximum sampling rate of the MCP3913A1-E/SSVAO is 100 kSPS. The power consumption increases with the sampling rate, but the exact power consumption can be calculated using the formula provided in the datasheet section 5.1 'Power Consumption'.
  • The MCP3913A1-E/SSVAO has built-in overvoltage protection up to 5V, but it's still recommended to use external protection circuitry such as voltage dividers or clamping diodes to prevent damage. For undervoltage conditions, ensure that the input voltage is within the specified range (0V to VREF) to maintain accurate conversions.
  • Yes, the MCP3913A1-E/SSVAO can be used in a multi-channel configuration. Refer to the datasheet section 3.3 'Multi-Channel Mode' for configuration details. Additionally, Microchip provides an application note AN1348 that provides more information on multi-channel ADC configurations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3913A1-E/SSVAO Overview

Use the download button to access the MCP3913A1-E/SSVAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39, or try a keyword search, such as Other Signal Circuits

About Microchip Technology

Microchip Technology is a global semiconductor company that specializes in developing and manufacturing microcontrollers, mixed-signal, analog, and Flash-IP solutions. Their products are widely used across various industries, including automotive, industrial, consumer electronics, and communications. Microchip focuses on providing integrated solutions that enable innovation and enhance performance in embedded systems.
