MCP3913A1T-E/SS - Microchip

Description: MICROCHIP - MCP3913A1T-E/SS - Analog Front End, 2.7V to 3.6V, SSOP-28

Download MCP3913A1T-E/SS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

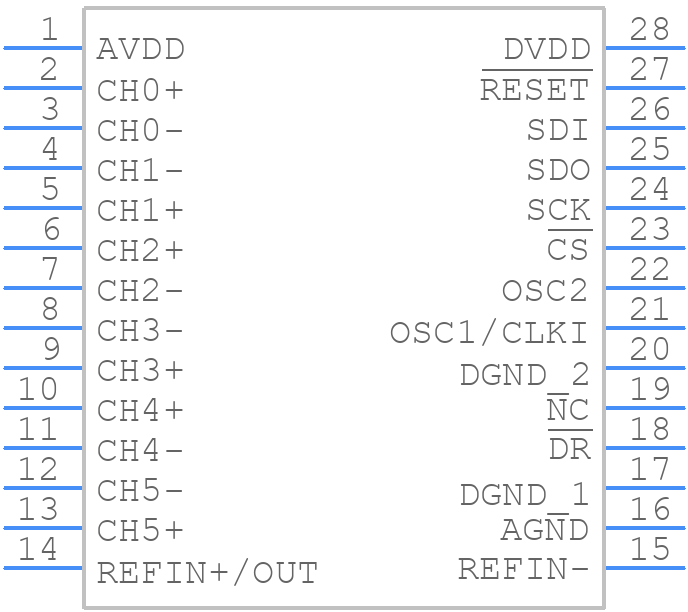

MCP3913A1T-E/SS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP3913A1T-E/SS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SS)28-Lead(SSOP)
click to zoom
3D Models
MCP3913A1T-E/SS - Microchip - 3D model - Small Outline Packages - (SS)28-Lead(SSOP)
click to zoom

MCP3913A1T-E/SS Details

  • Manufacturer Part Number:

    MCP3913A1T-E/SS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM WIDTH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SSOP-28

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

MCP3913A1T-E/SS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP3913A1T-E/SS involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • Calibration of the MCP3913A1T-E/SS involves adjusting the internal gain and offset registers to compensate for any errors. This can be done using the device's built-in calibration registers or through external calibration using a precision voltage reference.
  • The maximum sampling rate of the MCP3913A1T-E/SS is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency and the device's conversion time.
  • Yes, the MCP3913A1T-E/SS can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple channels. However, the device's internal multiplexer can only handle up to 4 channels.
  • The MCP3913A1T-E/SS has built-in error detection and correction mechanisms, such as CRC (Cyclic Redundancy Check) and parity checking. Additionally, the device has interrupt flags that can be used to detect and handle errors and exceptions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP3913A1T-E/SS Overview

Use the download button to access the MCP3913A1T-E/SS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP39, or try a keyword search, such as Other Signal Circuits
