MCP4141-103E/MS - Microchip

Description: MCP4141-103E/MS, Digital Potentiometer 10kΩ 129-Position Serial-SPI 8-Pin MSOP

Download MCP4141-103E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

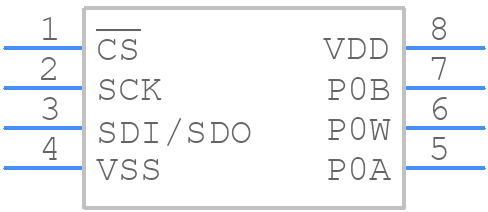

Symbol
MCP4141-103E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4141-103E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - /MS
click to zoom
3D Models
MCP4141-103E/MS - Microchip - 3D model - Small Outline Packages - /MS
click to zoom

MCP4141-103E/MS Details

  • Manufacturer Part Number:

    MCP4141-103E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    1 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    129

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

MCP4141-103E/MS Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP4141-103E/MS involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves writing a specific code to the device's control register. Additionally, make sure to use a stable voltage reference and a precise clock source.
  • The maximum operating frequency of the MCP4141-103E/MS is 1 MHz. Operating the device at higher frequencies can lead to decreased performance, increased power consumption, and potential instability. It's recommended to operate the device within the specified frequency range for optimal performance.
  • The POR and BOR features of the MCP4141-103E/MS are designed to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended voltage range, and that the device is properly configured for POR and BOR operation.
  • The MCP4141-103E/MS has a maximum junction temperature of 150°C. To ensure the device operates within a safe temperature range, provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device in high-temperature environments.
