- Part Number MCP42050-E/P
- Manufacturer Microchip
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 14-Lead Plastic Dual In-line (P)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCP42050-E/P Details
-
Manufacturer Part Number:
MCP42050-E/P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, PLASTIC, DIP-14
-
Pin Count:
14
-
Manufacturer Package Code:
PDIP-14
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
6 Weeks
MCP42050-E/P Frequently Asked Questions (FAQs)
-
Microchip recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the analog and digital signal traces separate and avoid running them parallel to each other.
-
The internal reference voltage can be configured by setting the VREF pin to either VDD or an external reference voltage. Ensure that the VREF pin is properly decoupled with a capacitor to minimize noise and ensure stable operation.
-
The maximum frequency of the clock signal that can be used with the MCP42050-E/P is 20 MHz. However, it's recommended to use a clock frequency of 10 MHz or less to ensure reliable operation and minimize noise.
-
The POR and BOR features can be handled by using an external reset circuit or by using the internal POR and BOR circuits. Ensure that the reset signal is properly debounced and that the device is held in reset for a sufficient amount of time to allow the internal circuits to stabilize.
-
The recommended method for programming the NVM is to use the Microchip-provided programming software and a dedicated programming tool, such as the PICkit 3. Ensure that the device is properly powered and that the programming software is configured correctly to avoid damaging the device.
Trust Checks
System Verified
MCP42050-E/P Overview

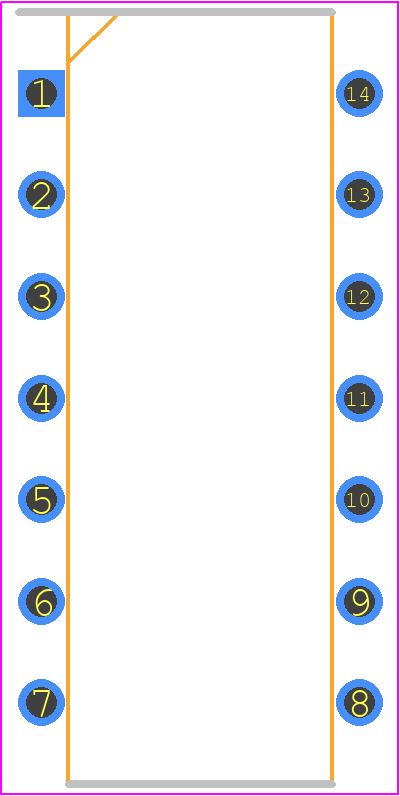

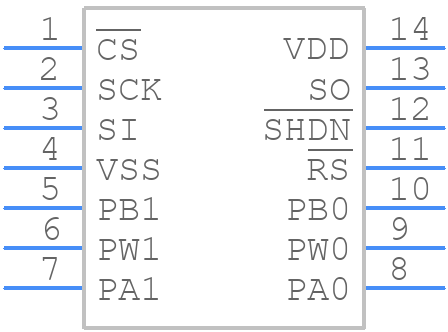

Use the download button to access the MCP42050-E/P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP42,
or try a keyword search, such as Digital Potentiometers
