Microchip recommends following a star-grounding scheme, using a solid ground plane, and keeping analog and digital signals separate to minimize noise. Additionally, use short and direct traces for the VREF and VOUT pins to reduce noise and ensure stability.
To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves setting the wiper to the midpoint and then adjusting the voltage output to the desired value. It's also important to use a high-precision voltage reference and to minimize noise and interference during calibration.
To prevent damage or malfunction, Microchip recommends powering up the VDD pin before the VREF pin, and ensuring that the VREF pin is stable before applying a voltage to the VOUT pin. Additionally, ensure that the voltage on the VOUT pin does not exceed the maximum rating during power-up.
To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and follow proper thermal design guidelines. Additionally, consider using a thermally-enhanced package or a device with a higher power rating if high-power applications are expected.
To prevent ESD damage, follow proper ESD handling and assembly procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices such as TVS diodes or ESD arrays. Additionally, ensure that the PCB design includes ESD protection features such as guard rings and ESD-protected I/Os.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

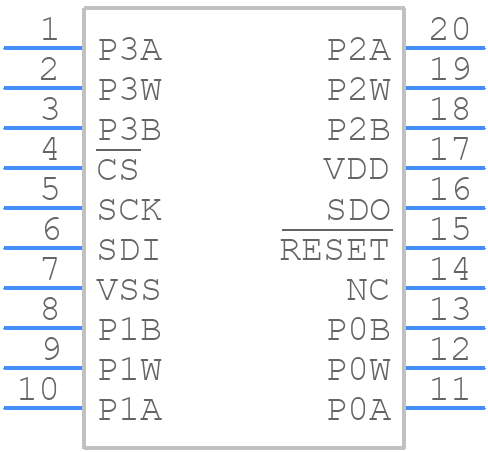

MCP4351-103E/ST Overview
Use the download button to access the MCP4351-103E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP43,
or try a keyword search, such as Digital Potentiometers
