A good PCB layout for the MCP4361T-503E/ST involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves setting the wiper position to the midpoint and then adjusting the gain and offset to achieve the desired output. Additionally, consider using a calibration routine in your firmware to fine-tune the device for your specific application.
The recommended power-up sequence for the MCP4361T-503E/ST is to first apply the analog power supply (VDD), followed by the digital power supply (VCC). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal management guidelines outlined in the datasheet. Additionally, consider using thermal simulation tools to model the thermal behavior of your design and identify potential hotspots.
Common pitfalls to avoid include incorrect pin connections, inadequate power supply decoupling, and insufficient thermal management. To troubleshoot issues, start by verifying the power supply and clock signals, then check the device's configuration and calibration. Use oscilloscopes and logic analyzers to debug the digital signals and analog outputs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP4361T-503E/ST Overview

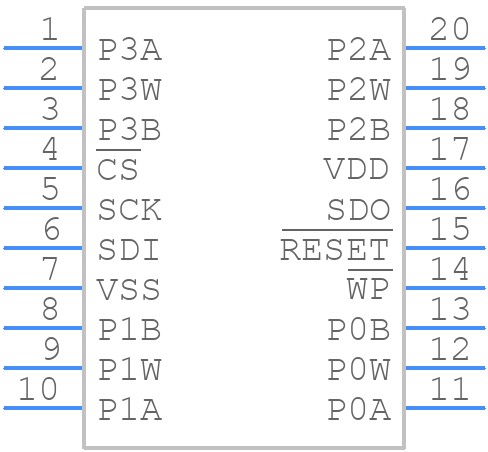

Use the download button to access the MCP4361T-503E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP43,
or try a keyword search, such as Digital Potentiometers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
