MCP4362-104E/ST - Microchip

Description: Digital Potentiometer 256 Step 100kOhm

Download MCP4362-104E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

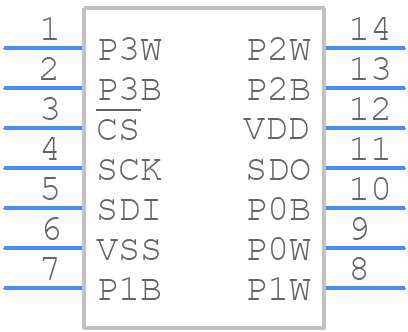

MCP4362-104E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4362-104E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom
3D Models
MCP4362-104E/ST - Microchip - 3D model - Small Outline Packages - (ST)14-Lead(TSSOP)
click to zoom

MCP4362-104E/ST Details

  • Manufacturer Part Number:

    MCP4362-104E/ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.1 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Positions:

    257

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MCP4362-104E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device's power supply pins (VDD and VSS) as close as possible to the device, and use a 10uF capacitor between VDD and VSS to filter out noise.
  • The MCP4362-104E/ST has an internal calibration circuit that can be used to calibrate the device. However, for optimal performance, it is recommended to perform an external calibration using an external voltage reference and a precision resistor network. Microchip provides an application note (AN1343) that provides a detailed calibration procedure.
  • The maximum operating frequency of the MCP4362-104E/ST is 50 kHz. Operating the device at frequencies above 50 kHz can lead to decreased performance, increased noise, and reduced accuracy. It is recommended to operate the device at frequencies below 50 kHz to ensure optimal performance.
  • To protect the MCP4362-104E/ST from ESD, it is recommended to handle the device with an ESD wrist strap or mat, and to use ESD-safe packaging and storage materials. Additionally, the device should be operated within its recommended operating temperature range (-40°C to +125°C) and protected from moisture and humidity.
  • The MCP4362-104E/ST is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the device's accuracy and linearity may be affected. It is recommended to consult the datasheet and application notes for specific guidance on operating the device in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4362-104E/ST Overview

Use the download button to access the MCP4362-104E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP43, or try a keyword search, such as Digital Potentiometers
