Microchip recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device's power and ground pins as close as possible to the decoupling capacitors, and use a low-impedance path for the VDD and VSS connections.
Microchip provides a range of application notes and design tools, such as the MCP4362 Configurator Tool, to help engineers configure the device for their specific application. Additionally, the datasheet provides detailed information on the device's registers and settings, and Microchip's technical support team can provide guidance and support.
The MCP4362-502E/ST has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should consider thermal management techniques such as heat sinking, thermal interface materials, and airflow management. Additionally, the device's thermal shutdown feature can help prevent damage from overheating.
Microchip recommends following a systematic troubleshooting approach, starting with a review of the device's configuration and settings, and then using tools like oscilloscopes and logic analyzers to debug the issue. The datasheet and application notes also provide guidance on troubleshooting common issues.
The MCP4362-502E/ST has built-in ESD protection, but engineers should still follow proper ESD handling and storage procedures to prevent damage. Additionally, the device's latch-up prevention features include a high-voltage tolerant input stage and a robust output driver, but engineers should still follow proper design and layout practices to prevent latch-up.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP4362-502E/ST Overview

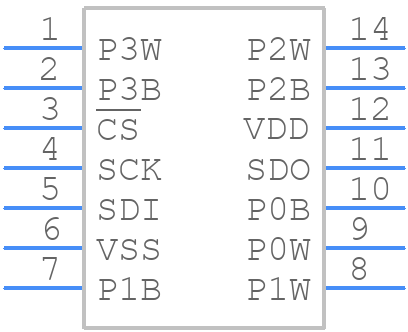

Use the download button to access the MCP4362-502E/ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP43,
or try a keyword search, such as Digital Potentiometers
