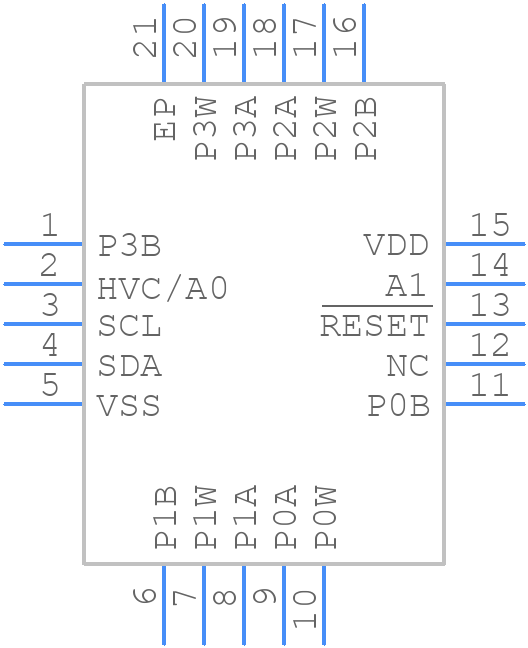

MCP4451-503E/ML - Microchip

MCP4451-503E/ML Details

• Manufacturer Part Number:

  MCP4451-503E/ML

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  20

• Manufacturer Package Code:

  QFN-20

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Additional Feature:

  THE RESISTOR ARRAY VALUES ARE 5000 OHM,10000 OHM, 50000 OHM

• Bandwidth-Nom:

  2 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  S-PQCC-N20

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Positions:

  257

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  5.5 V

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  0.6 mA

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  150 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Total Resistance-Nom:

  100000 Ω

• Width:

  4 mm
