MCP4452-503E/ST - Microchip

Description: Digital Potentiometer ICs 50k I2Cquad Ch Rheo 8bit volatile memory

Download MCP4452-503E/ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

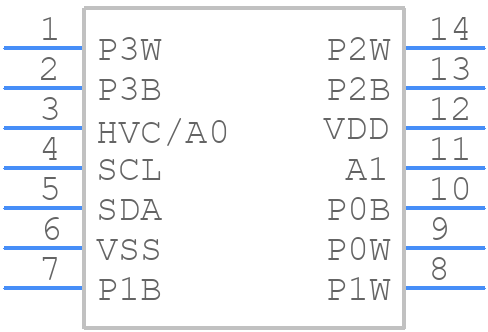

MCP4452-503E/ST - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4452-503E/ST - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - ST14 [TSSOP]
click to zoom
3D Models
MCP4452-503E/ST - Microchip - 3D model - Small Outline Packages - ST14 [TSSOP]
click to zoom

MCP4452-503E/ST Details

  • Manufacturer Part Number:

    MCP4452-503E/ST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    THE RESISTOR ARRAY VALUES ARE 5000 OHM,10000 OHM, 50000 OHM

  • Bandwidth-Nom:

    2 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    4

  • Number of Positions:

    257

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MCP4452-503E/ST Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device's power and ground pins as close as possible to the decoupling capacitors, and use a low-impedance path for the VDD and VSS connections.
  • The MCP4452-503E/ST requires a power-on reset (POR) to ensure proper initialization. A 10kΩ pull-up resistor on the VDD pin and a 100nF decoupling capacitor between VDD and VSS are recommended. Additionally, the device should be powered up slowly (dv/dt < 10mV/μs) to prevent latch-up.
  • The maximum capacitance that can be connected to the digital output pins is 100pF. Exceeding this value may cause the output to oscillate or malfunction.
  • The MCP4452-503E/ST has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and keep the device away from heat sources. Also, consider the thermal resistance (RθJA) of the package when designing the PCB.
  • The MCP4452-503E/ST's non-volatile memory can be programmed using the I2C interface. Use a programming tool or software that supports the I2C protocol, and follow the programming sequence outlined in the datasheet.
