MCP4542-503E/MS - Microchip

Description: Digital Potentiometer 128 Step 50kOhm

Download MCP4542-503E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

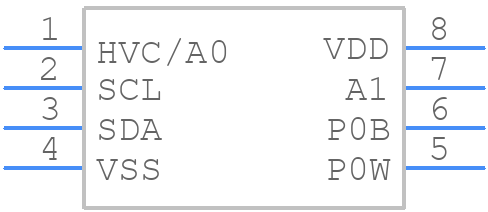

MCP4542-503E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4542-503E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MS MSOP
click to zoom
3D Models
MCP4542-503E/MS - Microchip - 3D model - Small Outline Packages - 8 Lead MS MSOP
click to zoom

MCP4542-503E/MS Details

  • Manufacturer Part Number:

    MCP4542-503E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    NON-VOLATILE MEMORY

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    129

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    3 mm

MCP4542-503E/MS Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device away from high-frequency sources and use shielded cables for analog signals.
  • To ensure accuracy and linearity, use a high-quality external reference voltage, keep the input voltage within the recommended range, and use a low-noise power supply. Additionally, consider using a voltage reference buffer and a low-pass filter to reduce noise and improve output stability.
  • The maximum output current of the MCP4542-503E/MS is 5 mA. To handle output current limiting, use an external buffer amplifier or an op-amp with a high output current capability. You can also use a current-limiting resistor in series with the output to prevent damage to the device.
  • The MCP4542-503E/MS has a standard SPI interface, which can be easily interfaced with most microcontrollers. Use a 3-wire SPI bus (SCK, SDI, and SDO) to communicate with the device. Ensure that the microcontroller's SPI clock frequency is within the recommended range (typically 1-5 MHz).
  • The POR threshold is typically around 1.5 V, and the BOR threshold is around 2.2 V. These thresholds ensure that the device resets properly during power-up and power-down sequences, and during brown-out conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4542-503E/MS Overview

Use the download button to access the MCP4542-503E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP45, or try a keyword search, such as Digital Potentiometers
