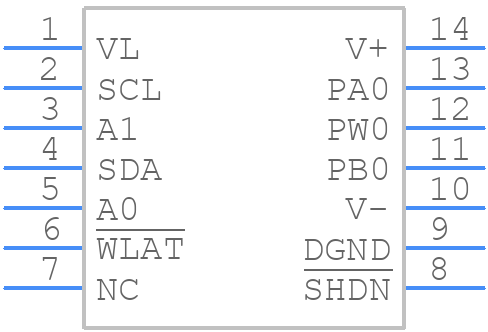

MCP45HV31-104E/ST - Microchip

MCP45HV31-104E/ST Details

• Manufacturer Part Number:

  MCP45HV31-104E/ST

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  14

• Manufacturer Package Code:

  TSSOP-14

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Additional Feature:

  THE RESISTOR ARRAY VALUES ARE 5000 OHM,10000 OHM, 50000 OHM

• Bandwidth-Nom:

  0.024 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Positions:

  128

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  18 V

• Resistor Terminal Voltage-Min:

  -18 V

• Screening Level:

  AEC-Q100; TS 16949

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  0.65 mA

• Supply Voltage-Nom:

  3.5 V

• Surface Mount:

  YES

• Temperature Coefficient-Nom:

  100 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Total Resistance-Nom:

  100000 Ω

• Width:

  4.4 mm
