MCP4632-103E/UN - Microchip

Description: Dig.Potentiometer 2ch 10k 129 I2C MSOP10

Download MCP4632-103E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

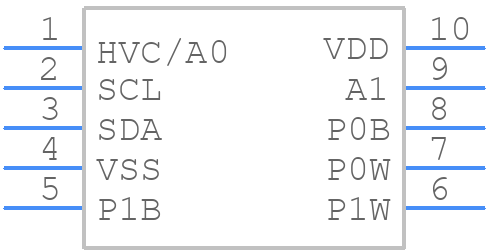

Symbol
MCP4632-103E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4632-103E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - UN(MSOP)
click to zoom
3D Models
MCP4632-103E/UN - Microchip - 3D model - Small Outline Packages - UN(MSOP)
click to zoom

MCP4632-103E/UN Details

  • Manufacturer Part Number:

    MCP4632-103E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    THE RESISTOR ARRAY VALUES ARE 5000 OHM,10000 OHM, 50000 OHM

  • Bandwidth-Nom:

    2 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Positions:

    257

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

MCP4632-103E/UN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended layout and routing guide in their application note AN1348, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The MCP4632-103E/UN requires an external voltage reference. A dedicated voltage reference IC such as the MCP1501 or MCP1521 can be used. When choosing a voltage reference, consider factors such as accuracy, stability, and noise tolerance. The voltage reference should be able to provide a stable voltage output within the specified range of the MCP4632-103E/UN.
  • The maximum operating frequency of the MCP4632-103E/UN is 50 kHz. Operating the device at higher frequencies can lead to decreased performance, increased power consumption, and potential instability. It is recommended to operate the device within the specified frequency range to ensure optimal performance.
  • The POR and BOR features of the MCP4632-103E/UN are designed to ensure the device powers up correctly and recovers from brown-out conditions. To handle these features, ensure that the power supply is stable and within the specified range, and that the device is properly reset during power-up. The datasheet provides more information on the POR and BOR timing and requirements.
  • The MCP4632-103E/UN has a specified operating temperature range of -40°C to +125°C. To ensure the device operates within this range, consider factors such as PCB thermal design, component placement, and heat sinking. The device's thermal resistance and power consumption should also be taken into account to prevent overheating.
