MCP4642-502E/UN - Microchip

Description: Digital Potentiometer 128 Step 5kOhm

Download MCP4642-502E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

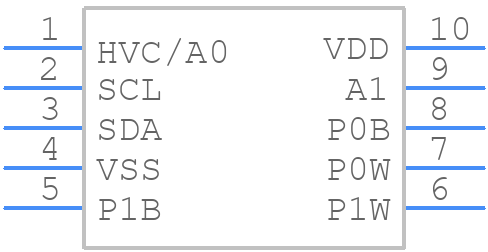

MCP4642-502E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP4642-502E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - UN(MSOP)
click to zoom
3D Models
MCP4642-502E/UN - Microchip - 3D model - Small Outline Packages - UN(MSOP)
click to zoom

MCP4642-502E/UN Details

  • Manufacturer Part Number:

    MCP4642-502E/UN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    NON-VOLATILE MEMORY

  • Bandwidth-Nom:

    2 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Positions:

    129

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    150 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Total Resistance-Nom:

    5000 Ω

  • Width:

    3 mm

MCP4642-502E/UN Frequently Asked Questions (FAQs)

  • Microchip provides a layout and routing guide in the MCP4642-502E/UN datasheet, but it's also recommended to follow general analog layout best practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops.
  • The MCP4642-502E/UN requires calibration and configuration to achieve optimal performance. Microchip provides a calibration procedure in the datasheet, and it's recommended to follow this procedure carefully. Additionally, the device can be configured using the SPI interface, and the configuration registers are described in the datasheet.
  • The MCP4642-502E/UN has an operating temperature range of -40°C to +125°C. The device's performance may be affected by temperature, with changes in gain, offset, and linearity. It's recommended to consult the datasheet for detailed information on temperature-related performance characteristics.
  • The MCP4642-502E/UN is a sensitive analog device and requires protection from ESD and other environmental stresses. It's recommended to follow standard ESD handling procedures, use a grounded wrist strap, and store the device in a static-shielding bag or tube. Additionally, the device should be operated within the recommended voltage and current limits to prevent damage.
  • The recommended power-up sequence for the MCP4642-502E/UN is to apply VDD first, followed by VREF, and then the analog input signal. The power-down sequence should be reversed. It's also recommended to ensure that the device is properly configured and calibrated before applying the analog input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP4642-502E/UN Overview

Use the download button to access the MCP4642-502E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP46, or try a keyword search, such as Digital Potentiometers
