Microchip recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the device's power and ground pins as close as possible to the decoupling capacitors, and use short, direct traces for the VREF and VOUT pins.
To ensure accuracy and stability, use a high-quality, low-ESR decoupling capacitor (e.g., 10uF ceramic) close to the VDD pin, and a 100nF capacitor between the VREF pin and ground. Also, keep the input voltage (VDD) stable and within the recommended range, and avoid sudden changes in the output voltage.
The MCP4642-503E/UN can supply up to 20mA of output current. However, as the output current increases, the output voltage accuracy may degrade. To maintain accuracy, it's recommended to keep the output current below 10mA, and use an external buffer amplifier if higher currents are required.
The MCP4642-503E/UN uses a standard SPI interface. The clock frequency can be up to 10MHz, and the data should be clocked in on the rising edge of the clock signal. The device requires a minimum of 16 clock cycles for a complete write operation, and the CS pin should be low for the entire operation.
The MCP4642-503E/UN has a built-in POR circuit that resets the device when the input voltage (VDD) falls below 1.5V. During POR, the output voltage is undefined, and the device will output a random value. Once VDD exceeds 1.5V, the device will reset and output the default value (mid-scale) until a new value is written to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP4642-503E/UN Overview

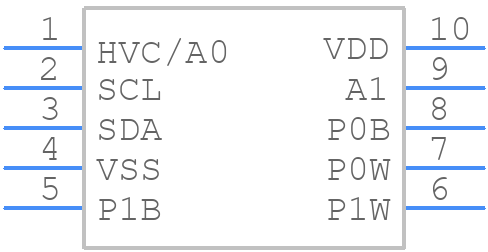

Use the download button to access the MCP4642-503E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP46,
or try a keyword search, such as Digital Potentiometers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
