MCP47CMB02-E/MF - Microchip

Description: Digital to Analog Converters - DAC I2C, Dual Channel, 8-Bit

Download MCP47CMB02-E/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

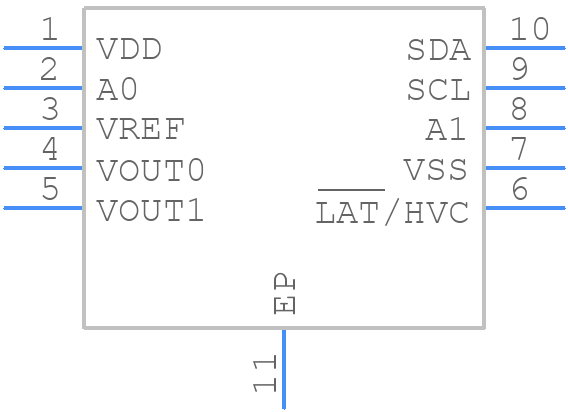

MCP47CMB02-E/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CMB02-E/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MF)10-Lead(DFN)
click to zoom
3D Models
MCP47CMB02-E/MF - Microchip - 3D model - Small Outline No-lead - (MF)10-Lead(DFN)
click to zoom

MCP47CMB02-E/MF Details

  • Manufacturer Part Number:

    MCP47CMB02-E/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    DFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0391%

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    0.72 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP47CMB02-E/MF Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize signal integrity.
  • The MCP47CMB02-E/MF has a built-in voltage reference, but it can also be configured to use an external voltage reference. Refer to the datasheet and application notes for specific configuration details and equations to calculate the required resistors and capacitors.
  • The maximum output current of the MCP47CMB02-E/MF is 20 mA. Exceeding this current limit can increase power dissipation, which may affect the device's reliability and lifespan. Ensure that the output current is within the specified limit to maintain optimal performance and reliability.
  • The MCP47CMB02-E/MF does not have built-in overcurrent protection. However, you can implement external overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC. This will help prevent damage to the device and the surrounding circuitry in case of an overcurrent event.
  • The thermal resistance of the MCP47CMB02-E/MF is typically around 30°C/W. This means that for every watt of power dissipated, the device's temperature will increase by 30°C. Ensure that the device is properly heat-sinked and that the operating temperature is within the specified range to maintain optimal performance and reliability.
