MCP47CMB11-E/UN - Microchip

Description: Digital to Analog Converters - DAC I2C, Single Channel, 10-Bit

Download MCP47CMB11-E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

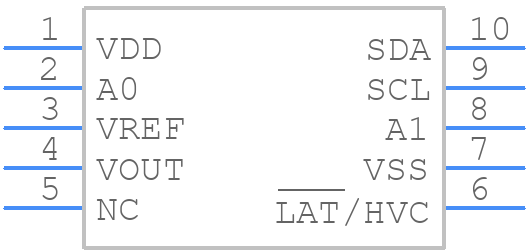

MCP47CMB11-E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CMB11-E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (UN)[MSOP]_10
click to zoom
3D Models
MCP47CMB11-E/UN - Microchip - 3D model - Small Outline Packages - (UN)[MSOP]_10
click to zoom

MCP47CMB11-E/UN Details

  • Manufacturer Part Number:

    MCP47CMB11-E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    0.62 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP47CMB11-E/UN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's application note (AN1348) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To ensure accurate voltage output, it's essential to follow the recommended calibration procedure outlined in the datasheet, use a high-precision voltage reference, and minimize noise and interference in the system.
  • The MCP47CMB11-E/UN has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures.
  • Yes, the MCP47CMB11-E/UN can be used in a ratiometric configuration, where the output voltage is proportional to the input voltage reference. However, this requires careful consideration of the voltage reference and output voltage ranges to ensure accurate operation.
  • The MCP47CMB11-E/UN has a built-in power-on reset (POR) and brown-out detection (BOD) circuitry. To handle these events, it's recommended to use an external capacitor to filter the power supply and ensure a clean reset signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47CMB11-E/UN Overview

Use the download button to access the MCP47CMB11-E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters
