MCP47CMB12-E/UN footprint, schematic symbol and 3D model by Microchip

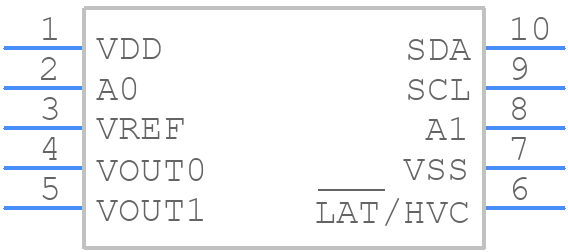

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP47CMB12-E/UN
Part Number MCP47CMB12-E/UN
Manufacturer Microchip
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - (UN) [MSOP]
Released Date Mar 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCP47CMB12-E/UN Details

Manufacturer Part Number:
MCP47CMB12-E/UN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-8
Pin Count:
10
Manufacturer Package Code:
MSOP-10
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
22 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
19
Analog Output Voltage-Max:
5.5 V
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
SERIAL
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e3
Length:
3 mm
Linearity Error-Max (EL):
0.0244%
Number of Bits:
10
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Screening Level:
MIL-STD-883
Seated Height-Max:
1.1 mm
Settling Time-Nom (tstl):
16 µs
Supply Current-Max:
0.72 mA
Supply Voltage-Nom:
5.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
3 mm

MCP47CMB12-E/UN Frequently Asked Questions (FAQs)

Microchip provides a recommended PCB layout in the datasheet, but it's also recommended to follow general analog layout guidelines, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling.
To ensure accurate voltage output, make sure to follow the recommended voltage reference bypassing and decoupling, and use a stable input voltage. Also, consider the output voltage tolerance and temperature coefficient when designing your system.
The maximum output current capability of the MCP47CMB12-E/UN is typically 10mA, but it's recommended to check the output current capability for the specific output voltage range and load impedance in your application.
The MCP47CMB12-E/UN can be interfaced with a microcontroller using a SPI interface. Make sure to follow the SPI protocol and timing requirements, and use a compatible microcontroller with a SPI peripheral.
The MCP47CMB12-E/UN has a power-on reset feature that initializes the DAC to a default state. The power-on reset behavior is described in the datasheet, but it's recommended to verify the behavior in your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

MCP47CMB12-E/UN Overview

Use the download button to access the MCP47CMB12-E/UN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters
