Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications. Key considerations include keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches.
To ensure accurate voltage reference performance, it's crucial to follow proper layout and design practices. This includes using a low-impedance power supply, minimizing noise and interference, and keeping the voltage reference input pin (VREF) away from noisy signals. Additionally, consider using a voltage reference bypass capacitor to reduce noise and improve stability.
The MCP47CMB21-E/MF has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Be sure to consult the datasheet for specific temperature-related specifications and derating information.
The MCP47CMB21-E/MF's internal registers can be programmed using a serial interface, such as SPI or I2C. Microchip provides a detailed programming guide in the device's datasheet and application notes. It's essential to follow the recommended programming sequence and protocols to ensure correct device operation.
To ensure EMI and EMC compliance, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering techniques. Additionally, consider using EMI-reducing components, such as ferrite beads and common-mode chokes, and ensure that the device is properly decoupled and bypassed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP47CMB21-E/MF Overview

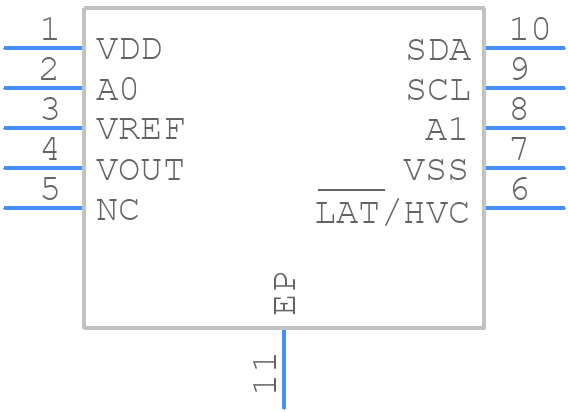

Use the download button to access the MCP47CMB21-E/MF schematic symbol, PCB footprint, and 3D model.
