MCP47CMB21-E/UN - Microchip

Description: Digital to Analog Converters - DAC I2C, Single Channel, 12-Bit

Download MCP47CMB21-E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

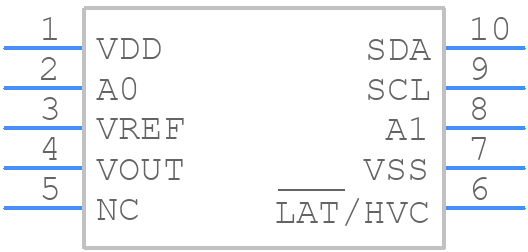

MCP47CMB21-E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CMB21-E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) [MSOP]
click to zoom
3D Models
MCP47CMB21-E/UN - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (UN) [MSOP]
click to zoom

MCP47CMB21-E/UN Details

  • Manufacturer Part Number:

    MCP47CMB21-E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2018-09-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP47CMB21-E/UN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's application note (AN1348) which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The MCP47CMB21-E/UN has an internal calibration mechanism, but it's recommended to perform an external calibration using an external voltage reference and a precision voltage source to achieve the highest accuracy. The calibration process is described in the device's application note (AN1348).
  • The maximum output current of the MCP47CMB21-E/UN is 10mA. Exceeding this current limit can affect the device's performance, including accuracy and linearity. It's recommended to ensure that the output current is within the specified limit to maintain optimal performance.
  • The MCP47CMB21-E/UN has built-in overvoltage and undervoltage protection. In the event of an overvoltage or undervoltage condition, the device will enter a high-impedance state, disconnecting the output from the load. The device will recover automatically when the input voltage returns to a valid range.
  • The thermal resistance of the MCP47CMB21-E/UN is 125°C/W. High temperatures can affect the device's performance, including accuracy and linearity. It's recommended to ensure that the device is operated within the specified temperature range and that proper thermal management is implemented to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47CMB21-E/UN Overview

Use the download button to access the MCP47CMB21-E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters
