A good PCB layout for the MCP47CMB22-E/UN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain settings accordingly. It's also important to consider the specific requirements of your application, such as the input signal range and desired output voltage range.
Some common pitfalls to avoid when designing with the MCP47CMB22-E/UN include not following proper PCB layout guidelines, not providing adequate power supply decoupling, and not considering the impact of temperature on the device's performance. Additionally, not properly configuring the device's registers and not accounting for the device's internal voltage reference can also lead to issues.
To troubleshoot issues with the MCP47CMB22-E/UN, start by verifying that the device is properly configured and that the input signals are within the specified range. Check the power supply voltage and decoupling, and ensure that the PCB layout is correct. Use an oscilloscope to measure the output voltage and look for signs of noise or oscillation. If the issue persists, consult the datasheet and application notes for guidance.
The MCP47CMB22-E/UN is rated for operation up to 125°C, but it's essential to consider the impact of temperature on the device's performance and accuracy. At high temperatures, the device's offset voltage and gain may drift, affecting its accuracy. To mitigate this, consider using a temperature sensor to monitor the device's temperature and adjust the calibration accordingly. Additionally, ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP47CMB22-E/UN Overview

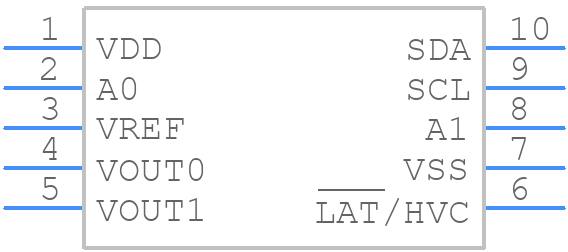

Use the download button to access the MCP47CMB22-E/UN schematic symbol, PCB footprint, and 3D model.
