MCP47CMD22-E/UN - Microchip

Description: 12 Bit Digital to Analog Converter 2 10-MSOP

Download MCP47CMD22-E/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

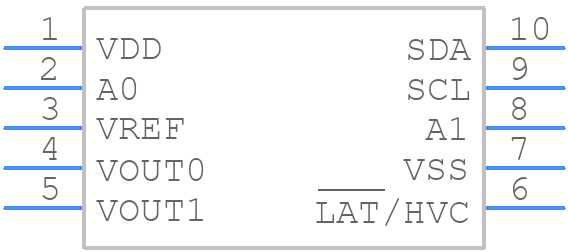

MCP47CMD22-E/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP47CMD22-E/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - **10-Lead Plastic Micro Small Outline Package (UN) (MSOP)
click to zoom
3D Models
MCP47CMD22-E/UN - Microchip - 3D model - Small Outline Packages - **10-Lead Plastic Micro Small Outline Package (UN) (MSOP)
click to zoom

MCP47CMD22-E/UN Details

  • Manufacturer Part Number:

    MCP47CMD22-E/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.024414063%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.61 mA

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP47CMD22-E/UN Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
  • To ensure accurate voltage output, it is essential to use a high-quality external reference voltage (VREF) and to decouple the power supply lines (VDD and VSS) with suitable capacitors.
  • The maximum clock frequency that the MCP47CMD22-E/UN can handle is 50 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • Yes, the MCP47CMD22-E/UN can be used in a multi-master SPI bus configuration. However, it is essential to ensure that only one master is active at a time to avoid bus contention and data corruption.
  • To enter power-down mode, set the PD bit in the Control Register to '1'. In power-down mode, the device consumes minimal power, and the output voltage is disconnected from the load. To exit power-down mode, set the PD bit to '0'.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP47CMD22-E/UN Overview

Use the download button to access the MCP47CMD22-E/UN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP47, or try a keyword search, such as Digital to Analog Converters
